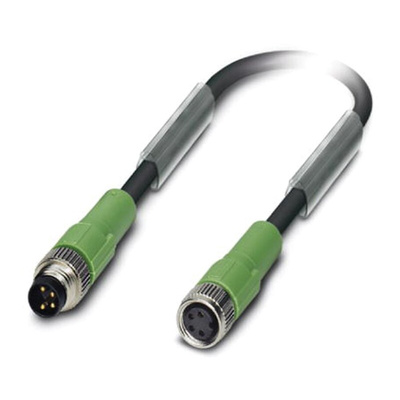

1682142, Phoenix Contact Straight Male 4 way M8 to Straight Female 4 way M8 Sensor Actuator Cable, 300mm, Кабельная сборка

8582715
Номер производителя: 1682142Производитель: Phoenix Contact
Цена за шт.
4508.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact Sensor Actuator Cable, 4A Nominal Current Rating, Zinc Die-Cast and Nickel-Plated Screw Connection - SAC-4P-M 8MS/0,3-PUR/M 8FS - 1682142

To transfer data across your control network in the blink of an eye, choose this sensor actuator cable from Phoenix Contact. It has two straight M8 connectors, one with a socket and the other with a plug design. By connecting these ends to transducers, switches or proximity sensors, you can easily send signals between them and enjoy a safer, more efficient process.
This hardy device has a wide operating temperature range of -25°C to +90°C, so it can handle the heat thrown at it by harsh industrial conditions. A high IP68 rating shows it bears up against dust and water, including long periods of immersion.

Features & Benefits

• Unshielded type, so it's flexible for quick and easy installation
• Overvoltage Category II for reliable electrical safety
• NBR sealing is resistant to oil damage and abrasion to allow for use in heavy-duty contaminated environments
• Supports AC operating voltages of up to 48V and DC operating voltages of up to 60V, so it's highly versatile
• 0.2Nm tightening torque on M8 connectors for easy installation by hand

Техническая спецификация
pdfDatasheet
