1411422, Phoenix Contact Adapter, Разъем

QPD H 4PE6.0 4x9-14 BK

The Phoenix Contact QPD H connector is from the QUICKON range designed to create a fast connection saving up to 80% of your time for on-site connections. With touch protected IDC technology the connector gives you safer connection of round cables.

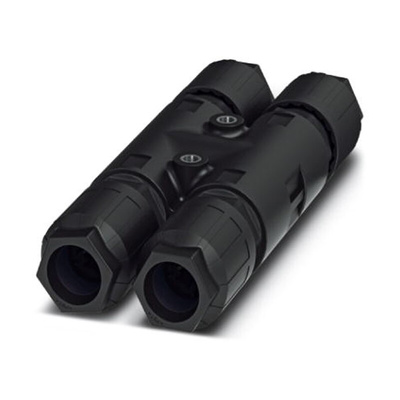

QPD H 4PE6.0 4x9-14 BK is a black, 5 position H connector with a 1 kV rating.

Features and Benefits

• Quick and easy to assemble
• No special tools required

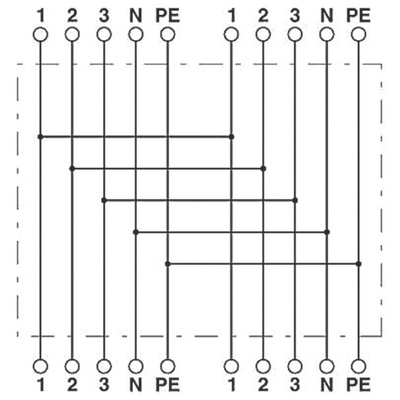

• Can be used as a H distributer/Star distributer
• No need to strip cable wires before use
• Can be used more than once
• Up to IP68 protection
• IK07 gives protection against a 500 g object being dropped on to the connector from a height of 40 cm
• Screw locking
• Fast connection automatically creates the contact and strain relief when tightened
• Suitable for use with 9mm to 14mm cable

Standards

DIN EN 0105

Datasheet 1411422
