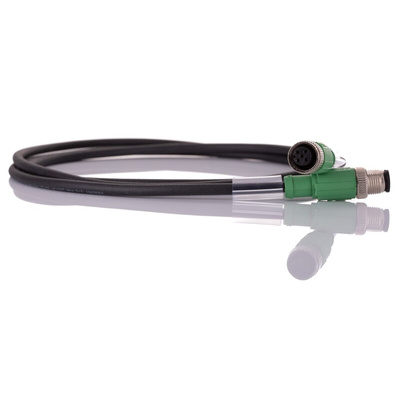

1500907, Phoenix Contact Straight Male 5 way M12 to Straight Female 5 way M12 Sensor Actuator Cable, 1.5m, Кабельная сборка

Phoenix Contact Sensor Actuator Cable, 4A Current Rating, 60V DC Supply Voltage - SAC-5P-M12MS/ 1,5-PUR/M12FS SH - 1500907

Looking for a component to pass data between two devices? Choose this sensor actuator cable from Phoenix Contact. The 1.5m length lets you make short-range connections without excess clutter. A PUR sheath offers protection against UV, chemicals and vibrational stresses, so you can rest assured of long-term performance in challenging conditions. To suit demanding environments, the cable operates in a temperature range between -25°C and +80°C.

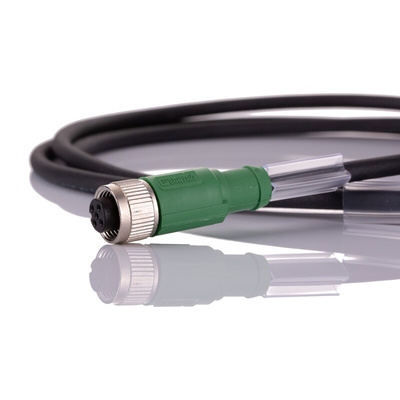

Connector A is male and connector B is female, so you can simply pair the ends with their opposite gender using the M12 push-in plugs to achieve a stable link. The five contacts housed inside each head are made from a copper-tin alloy that ensures low resistance of up to 5mΩ and supports efficient signal transfer. Thanks to a halogen-free construction, this cable won't release toxic gases in the event of a fire.

Features & Benefits

• IP67 rating indicates complete protection from dust and resistance to water jets from any direction
• 360° shielding prevents interference from electromagnetic signals
• UL 94 HB flammability class means it's self-extinguishing for improved fire safety
• 52mm (flexible) and 26mm (fixed) bend radius for easy installation in complex setups

Datasheet

Datasheet - 1500907

Instruction Sheet - Sensor/Actuator Cables

Line Drawing - 1500907
