1522105, Phoenix Contact Male 6 way M8 to Sensor Actuator Cable, 3m, Кабельная сборка

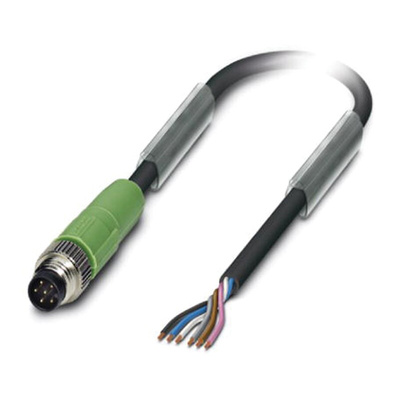

Phoenix Contact 6-Pin Cable Assembly, M8 to Unterminated, 3m - SAC-6P-M 8MS/ 3,0-PUR - 1522105

This cable assembly from Phoenix Contact is used to connect sensors and actuators to industrial machinery and equipment. It features a 6-pin M8 adapter on one end of the cable for the sensor connection. As the other end is unterminated, you have the freedom to decide which connector to use based on your machine design and specifications.
The cable has a category II surge voltage rating, which means it can withstand voltage spikes of up to 2500V for optimal electrical safety. It has an outer sheath made of polyurethane (PUR) that offers effective impact and abrasion resistance for reliable use in demanding environments. It also has polypropylene (PP) insulators on its conductors to protect you from electric shock. Thanks to its ample cable length of 3m, you can conveniently connect your sensors to the machine's control unit across a distance.

Features & Benefits

• UL94 HB (Underwriters' Laboratories) rating indicates it will self-extinguish in the event of a fire for greater safety
• Broad operating temperature range of -25°C to +90°C for use in a variety of environments
• Halogen-free construction to prevent the emission of toxic gases in the event of a fire

Datasheet

Datasheet - 1522105
