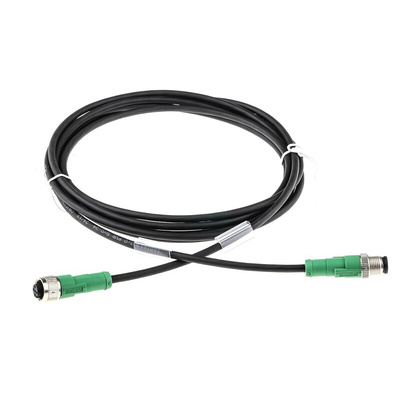

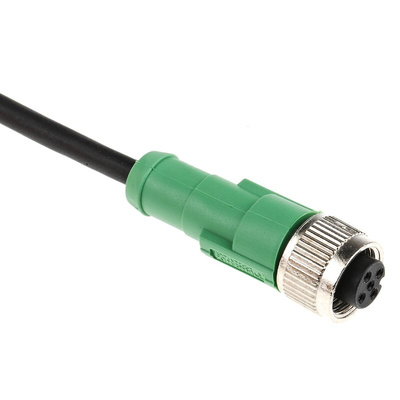

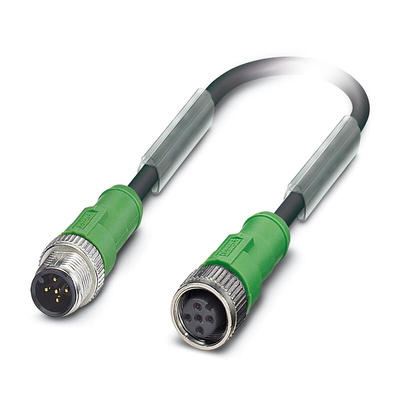

1681619, Phoenix Contact Male 5 way M12 to Female 5 way M12 Sensor Actuator Cable, 3m, Кабельная сборка

Phoenix Contact Male M12 to Female M12 Sensor Actuator Cable, 22AWG, 3m Length - SAC-5P-M12MS/3.0-PUR/M12FS - 1681619

Easily transfer data between a sensor and an actuator using this cable from Phoenix Contact. Both ends have M12 connectors so you can simply plug them into compatible ports without stripping the cable first. It has five cores with PP (polypropylene) insulation that protects it from EMI (electromagnetic interference) to deliver smooth signal quality. The contacts are made from copper-tin alloy, which is resistant to corrosion so you can use this cable in demanding environments.
The PUR (polyurethane) sheath offers thermal resistance to withstand extreme temperatures. For added durability, this cable is resistant to oil, acids and saltwater, so it's a reliable choice in factories and marine environments. At 3m long, it's a versatile option for linking devices across larger workplaces.

• Combined IP65 (ingress protection), IP67 and IP68 ratings indicate protection from dust, as well as low-pressure and high-pressure water jets
• Flammability rating of UL 94 HB means it stops burning in 60 seconds, to improve safety
• Wide operating temperature range between -25°C and +90°C to withstand harsh environments
• Bending radius of 50mm for flexible installation

Datasheet - 1681619
