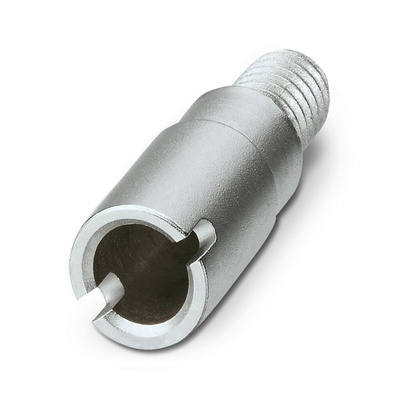

0303299, Phoenix Contact PSB 4/7/6 Series Test Connector

Phoenix Contact Test Connector, 4.1mm Pin Diameter, 2.17g Weight - PSB 4/7/6 - 0303299

Want to check the electrical performance of your linked terminal blocks without disconnecting every single wire? Reach for this test connector from Phoenix Contact. It fits onto your bridge shaft, creating a central point for probes to measure power values. Once secured, just plug in a compatible instrument testing tip to monitor the voltage, current and resistance of your medical imaging devices, automated factory processes and industrial machinery.
With a pin diameter of just 4.1mm, this small unit easily slides into the confined space between back-to-back terminals. The highly conductive silver-plated brass contact transmits the crystal-clear signals needed for accurate troubleshooting. As the connector screws firmly into your bridging panel, you can even run tests when your equipment vibrates. This is a robust option that handles a wide temperature range between -40°C and +80°C, so you can use it in challenging environments.

Features & Benefits

• Light weight of just 2.17g adds minimal strain to your panel or enclosure
• EAC approval indicates the product passed quality standard testing in Europe and Asia
• RoHS certification means this item contains only negligible amounts of any dangerous materials
