SM312DQD, Banner Diffuse Photoelectric Sensor, Block Sensor, 380 mm Detection Range, Фотоэлектрический датчик

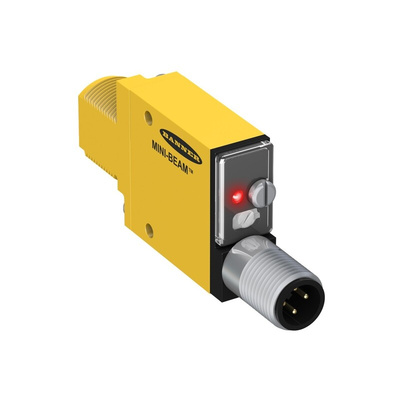

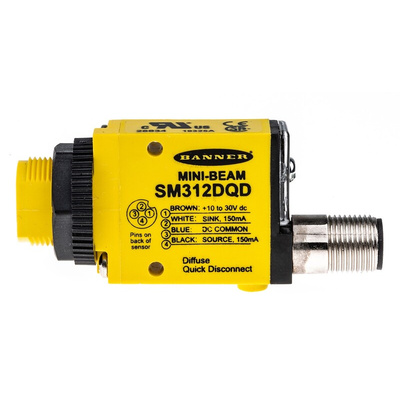

Banner Photoelectric Sensor, 380mm Detection Range, 1ms Response Time - SM312 Series - SM312DQD

Choose this photoelectric sensor from Banner to establish distances to components in your industrial setup. Its diffuse detection method means it sends out an infrared beam and receives the rebounding signal to determine the location of nearby objects. This means there's no need for a separate transmitter and receiver, saving you space in your system. An industry-standard M12 4-pin connection makes installation a walk in the park. Thanks to LED indicators, you're not left in the dark when monitoring this sensor's operating status.

Features & Benefits

• Small detection range of 380mm for precision applications
• IP67 rating means it's dust-tight and withstands immersion in 1m of water for up to 30 minutes
• Fast response time of 1ms for speedy switching
• Robust thermoplastic polyester housing resists impact, abrasion and wear
• Inbuilt reverse polarity protection safeguards the device from electrical damage

Applications

• Process and packaging plants
• Automotive production
• Industrial automation

Does this product perform reliably in extreme temperatures?

Yes. This unit has a wide operating temperature range between -20°C and +70°C, so it can take the heat in harsh industrial environments.

Datasheet

Instruction Manual - Photoelectric Sensor Solutions

Datasheet - SM312DQD
