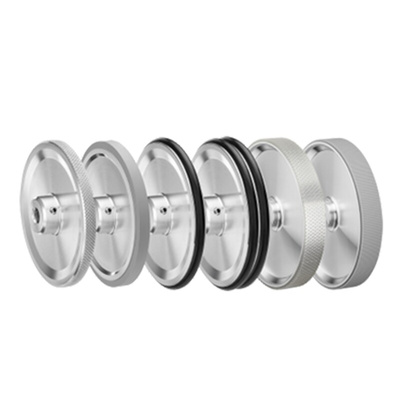

8.0000.3597.0010, Kübler 8.0000 Series Encoder Wheel, Измерительное колесо

Rotary encoder 5862 - absolute, multiturn, shaft, 58 mm

Multiturn rotary encoder in shaft design
With contact-free multiturn level and new intelligent sensing technology (I-S-T)
Designed with Integrative Technology®
4 (programmable) outputs
Resolution up to 8192 (13 Bit) per revolution, 4096 (12 Bit) revolutions, corresponds to 25 Bit
The following parameters can be programmed: code type, resolution per revolution, overall resolution, rotational direction (clockwise or counter clockwise), zero point, limit switch
Installation depth 66 mm
Solid shaft Ø 6 mm or Ø 10 mm
SSI interface
Protection rating IP65
Shock-resistant up to 250 g
Size Ø 58 mm

Standards

CE in accordance with EN 50082-2, EN 50081-2 and EN 55011 class B
Reacts against magnetic interference in accordance with EN 61000-4, severity level 5

Kubler

Push pull interface with inverted signals
Short circuit protection
Age and temperature compensation

Datasheet - 8.0000.3597.0010
