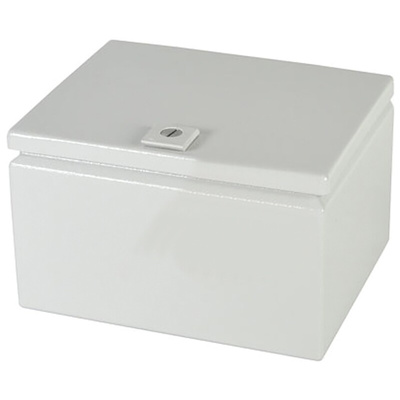

JB100806HC, Rittal JB Series Grey Carbon Steel Junction Box, IP66, 200 x 150 x 250mm

Rittal JB Series of Junction Box Enclosures

The JB series from Rittal offers a wide range of stainless steel, junction box enclosures which provide protection for dense wiring and sensitive small instruments. The JB series of junction boxes combine many of the advantages of Rittal’s proven AE and KL series enclosures, at an economical cost.

Standard 180° hinges
1⁄4 turn locks with double-bit inserts (3 mm)
Foamed-in-place gasketing
Knife-edge perimeter adds extra protection

Rittal Junction Box, 250mm Height, 200mm Width - JB Series - JB100806HC

This junction box from Rittal keeps your wiring safe from environmental damage and tampering. It's made from a durable carbon steel material that's resistant to corrosion and impact for use in harsh environments. An integrated quarter-turn latching mechanism helps to prevent unauthorised access. This box also has a polyurethane seal that's airtight and watertight to protect your connections against contaminants.

Features & Benefits

• Hinged door has an opening angle of 180° for easy access to wires
• Walls are 1.5mm thick for added durability
• Compact dimensions of 250 (height) x 200 (width) x 150mm (depth) to take up minimal space
• IP66 rating means it's protected against dust and high-pressure water jets

Applications

• Electrical outlets
• Marine and offshore industries
• Office buildings
• Bottling plants

How do I undo the latch on this junction box?

A screwdriver insert on the top lets you turn the latch to open the box for ease of access.
