RS PRO Multicore Data Cable, 1 Pairs, 0.35 mm², 2 Cores, 22 AWG, Screened, 100m, Grey Sheath, Кабель

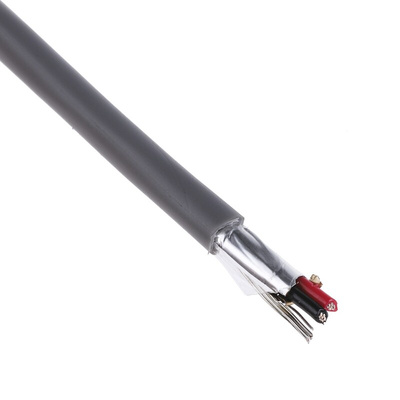

Overall Screened Single Pair Cable

A single twisted pair of 7//0.25 mm tinned copper conductors with polypropylene insulation, wrapped in an aluminised tape with a tinned copper drain wire and a PVC outer sheath.

Features and Benefits
·Designed for the internal wiring of appliances and electronic equipment
·PVC sheath

Standards

RoHS

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.

RS PRO 1 Pair Aluminium Foil-PET Tape Multipair Data Cable 0.35 mm² (Euroclass Eca) Grey 100m

Multipair cables play a big role in our day-to-day communications and can be found in most telephone and data networks. This multipair data cable from the RS PRO range has been expertly designed to meet the requirements of high-speed data-transmission systems.

Shielded with aluminium foil tape and grounded with a tinned-copper drain wire, this cable ensures protection against electrical interference and reduces signal distortion. Ideal for shops and offices, the cable features two conductors twisted into a single circuit, which works to cancel out crosstalk and external noise – a must for the computing and telecommunications industries.

The cable comes with a PVC sheath, which is robust and long-lasting. Delivering high flexibility and tensile strength, this cable is affordable and easy to install. With 100 metres to work with, it's suitable for domestic, commercial or industrial use.

Features and Benefits

• Multicore cable
• Cross-sectional area of 0.35 mm²
• Screened by aluminium foil-PET tape
• PVC sheath
• Voltage rating of 300 V
• Cable length of 100 m
• Stringently tested to RoHS (Restriction of Hazardous Substances) standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Industrial Cable

Cables designed to meet the special requirements of high speed data transmission systems associated with data processing or information systems; also for process and control applications.
