RS PRO Heating Element, 3in, 535 W, 220 V ac, Патронный нагреватель

Cartridge Heaters- Imperial Sizes

Cartridge heaters have high temperature lead wires that can stand temperature of up to 450̊C
High impact ceramic cap suitable for high vibration applications
Deep holes in ceramic cap prevents fraying of lead when bent
Nickel-chromium resistance wire for maximum heater life
TIG welded end disc prevents contamination and moisture absorption
Fiberglass lead wire insulation
10" Lead wires

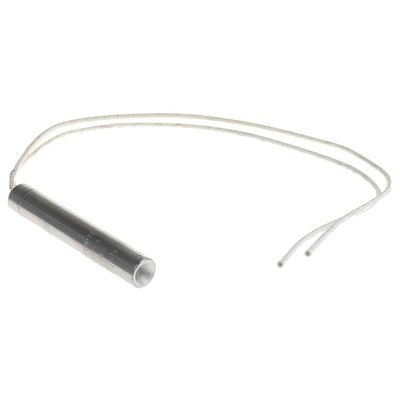

RS PRO Heating Element, 3 in, 535 W, 220 V AC

Apply targeted heat to metal plates and solids using this tube-shaped heating element from RS PRO. The cartridge heater is well-suited for a range of demanding industrial environments, including packaging and plastics applications.

These heating elements are designed to slide easily into drill holes in both imperial and metric sizes. Please note that in order for the element to work it must be fitted in tightly, so ordering the correct dimensions is crucial. This compact model has a diameter of just half an inch and is 3 inches long.

This cartridge heater can handle temperatures right up to +450°C thanks to the fibreglass-insulated, 10-inch lead wire. This means you can use it in manufacturing processes that call for localised heat. A nickel-chromium resistance wire ensures optimal heater life and is evenly wound for an even heat distribution. An RS PRO quality product, this heater has been stringently tested for safety.

Features and Benefits

• Cartridge heater
• Supply voltage of 220 V AC
• Power rating of 535 W
• Diameter of 0.5 inches
• Length of 3 inches
• Lead length of 10 inches
• Nickel-chromium resistance wire for maximum heater life
• TIG-welded end disc prevents contamination and moisture absorption
• Fibreglass lead wire insulation
• RoHS-compliant for restricted hazardous substances

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Cartridge Heaters

In order to obtain optimum performance from these products, it is advised that temperature sensing and control elements be used with them.

Designed to provide localised heat to a restricted work area requiring close thermal control
Cartridge heaters have low/moderate watt density elements consisting of helical wire coils on ceramic former or high watt density elements with the heating element located close to the sheath, which is swaged to improve heat conduction
All units supplied with instruction leaflet
