RS PRO Heating Element, 100mm, 200 W, 220 V ac, Патронный нагреватель

Cartridge Heaters- Metric Sizes

Cartridge heaters have high temperature lead wires that can stand temperature of up to 450̊C
High impact ceramic cap suitable for high vibration applications
Deep holes in ceramic cap prevents fraying of lead when bent
Nickel-chromium resistance wire for maximum heater life
TIG welded end disc prevents contamination and moisture absorption

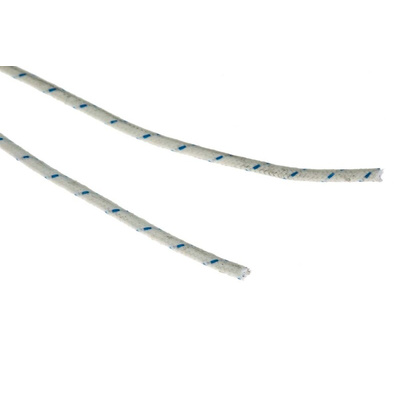

Fiberglass lead wire insulation
10" Lead wires

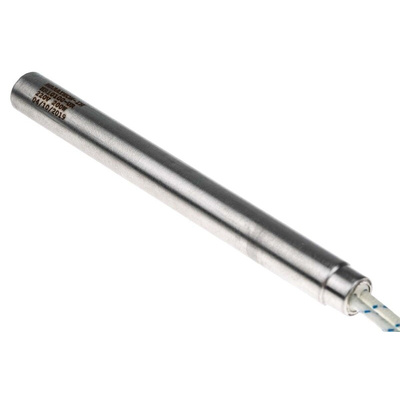

RS PRO Heating Element, 100 mm, 200 W, 220 V AC

This compact and versatile cartridge heater from RS PRO is a great choice for localised heating of a diverse range of metal plates and components. Commonly found in industrial environments, these type of heating elements are well-suited to manufacturing, packaging and printing applications, for example.

The heating element has a nickel-chromium resistance wire for improved longevity, and a TIG-welded end disc to prevent contamination and moisture absorption. It's designed to slide easily into holes that you can drill with metric or imperial drill sizes – note, however, that the element needs to be fitted snugly to operate correctly.

The lead wire is insulated with fibreglass to withstand temperatures up to +450°C. The flexible lead has deep holes punctured into a ceramic cap at the end to keep it from fraying when bent. This RS PRO quality product has been rigorously tested to ensure its reliability and safety.

Features and Benefits

• Cartridge heater
• Power rating of 200 W
• Supply voltage of 220 V AC
• Diameter of 10 mm
• Length of 100 mm
• Lead length of 10 inches
• Nickel-chromium resistance wire for maximum heater life
• TIG-welded end disc prevents contamination and moisture absorption
• Fibreglass lead wire insulation
• RoHS-compliant for hazardous substances

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Cartridge Heaters

In order to obtain optimum performance from these products, it is advised that temperature sensing and control elements be used with them.

Designed to provide localised heat to a restricted work area requiring close thermal control
Cartridge heaters have low/moderate watt density elements consisting of helical wire coils on ceramic former or high watt density elements with the heating element located close to the sheath, which is swaged to improve heat conduction
All units supplied with instruction leaflet
