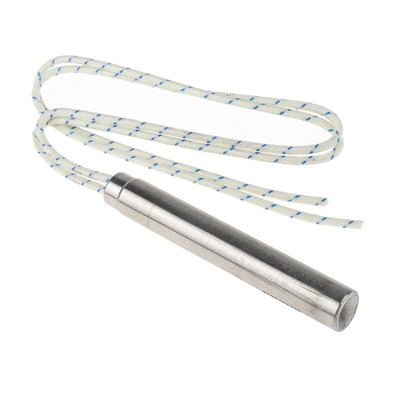

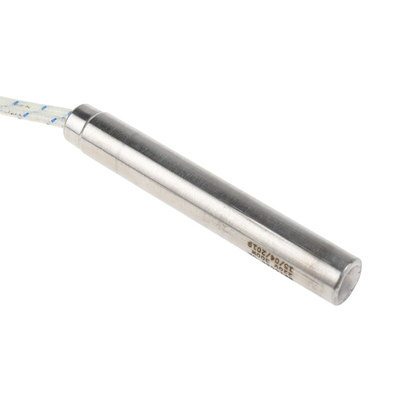

RS PRO Heating Element, 65mm, 300 W, 220 V ac, Патронный нагреватель

RS PRO Heating Element, 65 mm, 300 W, 220 V AC

Heat a wide range of metal plates and components with this tube-shaped 300 W heating element from RS PRO. It's well-suited for use in plastics and packaging applications, hot stamping and printing, as well as with test instruments.

These type of cartridge heaters are designed to slide neatly into holes drilled with both imperial and metric drill sizes. As the element won't work properly unless it has a snug fit, it's important that you think about what you're going to use it for before starting any drilling work.

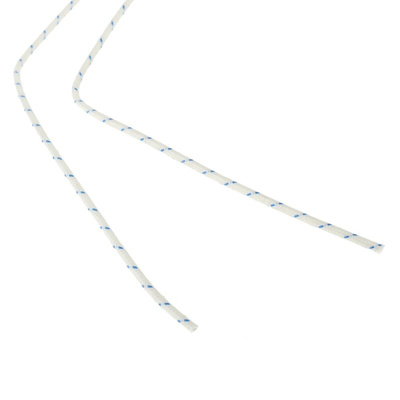

This heavy-duty heating element is fitted with a 10-inch lead wire that is insulated with fibreglass to handle temperatures right up to +450°C. The flexible lead has deep holes in its ceramic cap, which keep it from fraying if it gets bent.

As a quality product from RS PRO, this cartridge heater has been stringently tested for safe and reliable operation.

Features and Benefits

• Cartridge heater
• Power rating of 300 W
• Supply voltage of 220 V AC
• Diameter of 10 mm
• Length of 65 mm
• Lead length of 10 inches
• Nickel-chromium resistance wire for maximum heater life
• TIG-welded end disc prevents contamination and moisture absorption
• Fibreglass lead wire insulation
• Complies with Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS compliant on restricted hazardous substances

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
