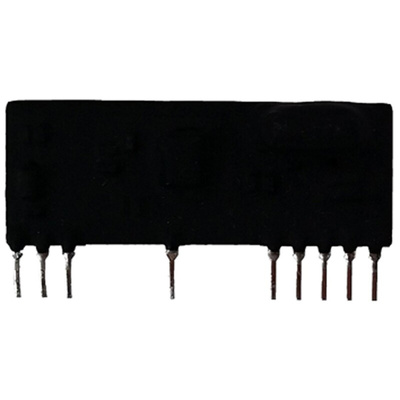

RF Solutions AM-RRQ3-433P RF Receiver Module 433.92 MHz, 3.3 → 8V, Модуль

AM Superheterodyne Receiver Module - RF Solutions

The compact RF Solutions AM Superheterodyne Receiver modules (AM-RRQ3-433P and AM-RX9-433P) will work with the correct corresponding AM Transmitter providing a radio link. The AM receiver (RX) operates on the 433 MHz frequency at 5V dc, ranging up to 100 metres. Applications include wireless security systems, data capture, remote control and remote sensing.

· CMOS/TTL Output
· Modulation: AM

·AM-RRQ3-433P:
Analogue RSSI Output
Operating voltage 3.3 V to 8 V
-108 dBm at 433MHz
Sleep Mode 0.5uA

· AM-RX9-433P:
Operating voltage 2.4 V to 5 V
Low Power: 2.6mA
Data Rate: Up to 10Kbps
Sensitivity: 110dBm

Wireless Modules - RF Solutions

SuperHeterodyne Receiver Module AM-RRQ3-433P
