SC 44.21 pro 115V, Muller Digital Time Switch 115 V ac, 2-Channel

7 Day 1 and 2 Channel Digital - SC44 pro

Text based menu and programming
LCD-Backlight
Elapsed time and pulse counter
Plug for DataKey DKpro (programmable via PC interface)
Security by PIN-Code
Permanent by date / holiday function
Unrestricted block programming
Manual permanent mode
Manual override
Automatic sorting of switching times on readout
Automatic daylight saving time
Can be programmed with supply disconnected (6 years battery reserve)

Muller Time Switch

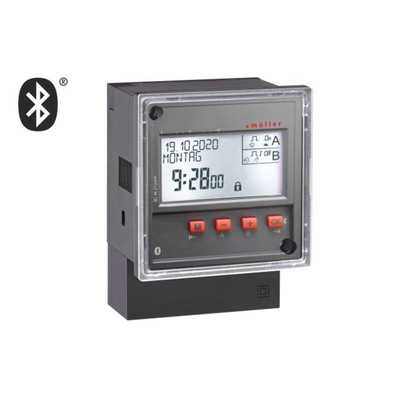

The Muller digital time switch is a programmable dual-channel device. It has a single pole normally open (SPNO) contact configuration and LCD display. This surface mount time switch is astronomical with the weekly program and 46 memory locations. It has a voltage rating of 115VAC and frequency ranging between 50Hz and 60Hz. It has a text-based menu that can be programmed even when supply is disconnected. The time switch is ideal for industrial applications.

Features and Benefits

A minimum interval of 1 minute
Segment length of 7-days
Plug for DataKey DKPro (programmable via PC interface)
Switching capacity 16A per channel
Permanent by date/holiday function
Manual permanent mode
Manual override
Screw terminal type
Automatic sorting of switching times on readout
Unrestricted block programming
Fully automatic daylight saving time
Elapsed time and pulse counter
Pulse and data-key function
Security by pin-code
46 memory spaces
10 years battery-reserve

Certifications

IP20 rated
VDE

Digital

Digital Timeswitch SC 44.X1 Pro Data Sheet

Datasheet

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
