SR-1000T-224, COTEK Pure Sine Wave 1000W Power Inverter, 24V dc Input, 194 → 246V ac Output, Инвертор

Cotek True Sine Wave DC to AC Rackmount Inverter, 1100W, SR-1000T Series

The Cotek SR-1000 inverter is designed to convert +/-24 and +/-48 Vdc power to a continuous ac power. The DC to AC converter case is a 1U 19 inch rack mounting unit. The SR-1000 inverter includes a powerful digital signal processor that allows easy programmability of the main parameters on the LCD display & keypad on the front panel and can be interfaced with RS232. Ideal applications of the DC to AC inverter include IT, telecommunications and industrial equipment.

True sine wave output (THD ˂2%)

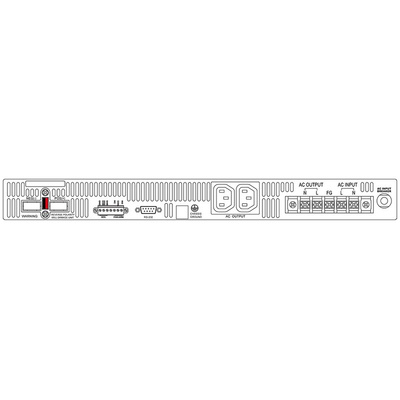

Standard 19inch 1U rackmount
Microprocessor controlled diagnostics and operation
User friendly LCD & LED displays
Dry contact for system alarm
RS232 communication port
Programmable output voltage (0% to 105%)
High efficiency up to 90%
Fan ageing, failure, disconnection & blockage alarm
Output short circuit / overload protection
Input polarity reverse / under voltage protection
Internal over temperature protection
Loading and temperature controlled cooling fan
Built in remote control

Standards

UL60950-1 ; EN60950-1
EN55022 :1998+A1 :2000+A2 :2003 Class B ; EN55024 :1997+A1 :2001+A2 :2003
FCC class B
EN6100-3-2:2000 Class A; EN6100-3-3:1995+A1:2001

Approvals

cUL, UL TUV, GS, CE, FC
