6ES7214-1HG40-0XB0, Siemens SIMATIC S7-1200 Series PLC CPU for Use with SIMATIC S7-1200 Series, 20.4 → 28.8 V dc Supply, Digital,, ПЛК

Siemens S7-224XP CPU, China Certified

A range of Siemens SIMATIC S7-200 Standard CPUs certified for full use within the China market.

With 24 inputs/outputs on board
Expandable with up to 7 expansion modules
6 fast counters (2x200 kHz, 4x400 kHz)
2 high-frequency pulse outputs (max. 100 kHz)
Battery module for long-term backup

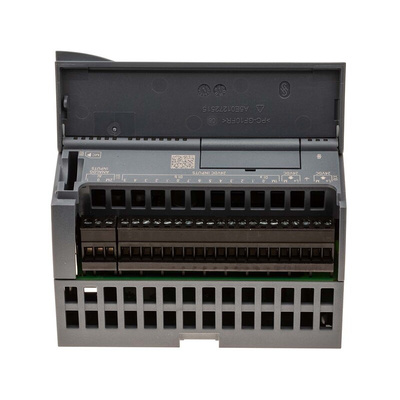

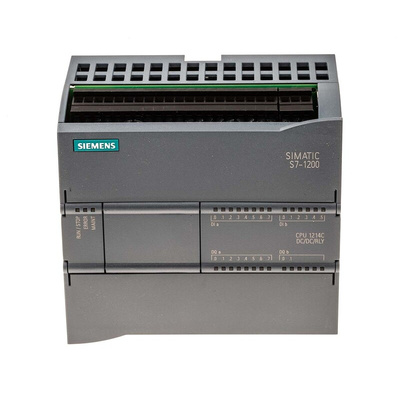

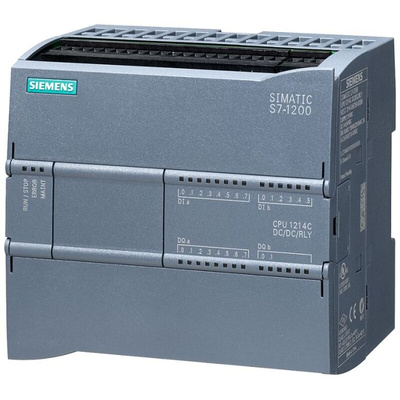

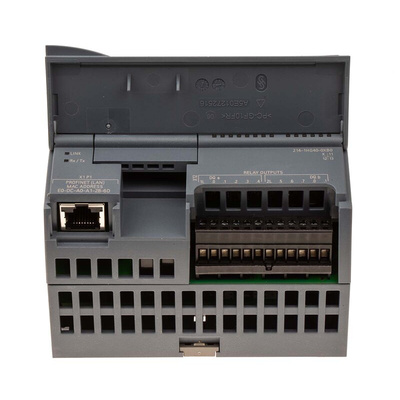

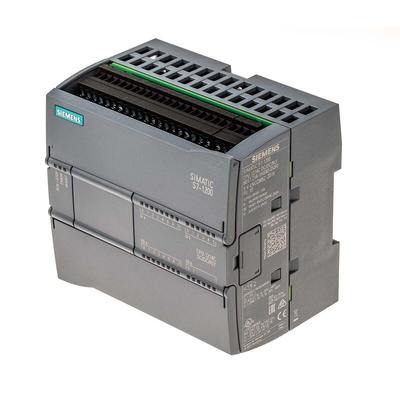

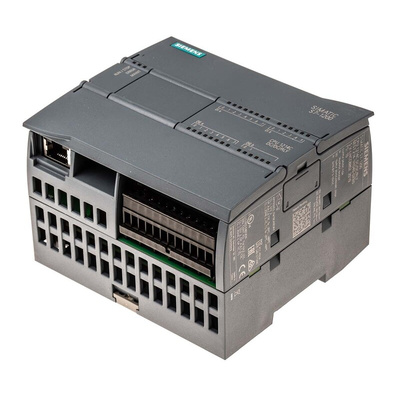

Siemens PLC CPU, 20.4 To 28.8V DC Voltage Supply Range, Maintenance-Free Backup Type - S7-1200 Series - 6ES7214-1HG40-0XB0

Seeking a super-smart processor for your PLC? This Siemens PLC CPU has the brainpower you need. It has 14 digital and 2 analogue inputs, so you can hook up a number of field devices. After processing the input data, it uses its 10 digital outputs to perform switching functions up to 2A for many different applications. An IP20 rating means it's touch-proof and protected from objects larger than 12mm, so you can handle it without risking a shock. This versatile CPU is used in production plants, HVAC systems and automatic gate setups.

Features & Benefits

• Wide operating temperature range between -20°C and +60°C for harsh settings
• Supports LAD, FBD and SCL programming languages to give wide functionality
• Slim measurements of 110 (W) x 100 (H) x 75mm (D), so it squeezes into tight systems

What's the memory rating of this unit?

This PLC CPU has a large integrated work memory of 100KBytes and a load memory of 4Mbytes to give you plenty of flexibility.

Can I use this unit in humid work areas?

Yes. This PLC CPU can operate in humidity levels of up to 95% RH, as long as it's non-condensing.
