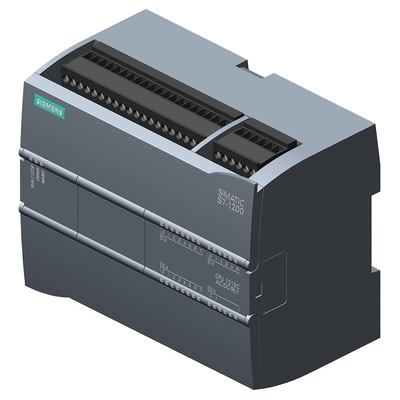

6ES7215-1BG40-0XB0, Siemens SIMATIC S7-1200 Series PLC CPU for Use with SIMATIC S7-1200 Series, 230 V ac Supply, Digital, Relay Output, 14, ПЛК

Siemens PLC CPU For Use With SIMATIC S7-1200 Series, 14 Inputs, Ethernet Network Type - 6ES7215-1BG40-0XB0

For complex data handling in your automation system, choose this versatile Siemens PLC CPU. The unit is configured for LAD, FBD and SCL programming languages, giving it the flexibility to carry out high-level computing operations. Using its 4MB load memory, the CPU processes data to perform control functions via the 10 integrated digital relay outputs. This unit has compact dimensions of 75 (L) x 130 (W) x 100mm (H), so it takes up minimal space. It's quick and easy to install using wall-mount or DIN rail methods.

• IP20 protection indicates resistance to dust and objects larger than 12mm
• -20°C to +60°C operating temperature range, so it's suitable for harsh environments
• Supply voltage rating of 85 to 265V AC for use with powerful electrical systems

Can I link this unit to my local area network?

Yes. This unit has an integrated Ethernet switch with 2 ports for connection to your LAN.

Can this unit receive data from thermocouples?

Yes. Although its 14 inputs are digital, two can be switched to analogue for use with thermocouples, pressure sensors and other devices that measure real-world parameters.
