RS PRO BC series 24V dc Hydraulic Oil Cooler, 25 to 100L/min max, 16 (Dynamic) bar, 25 (Static) bar max, Фильтр

RS PRO Portable Hydraulic Filtration Unit, 25 to 100 L/min, 24 V DC

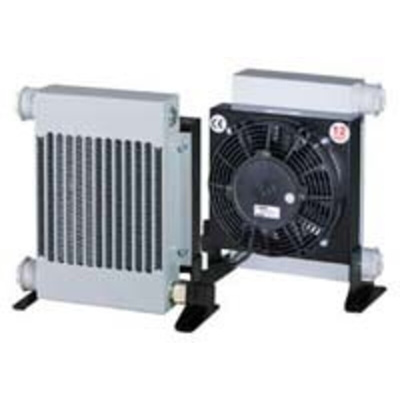

This oil filtration unit and cooler from RS PRO actively cools the hydraulic fluid from your system. This helps you maintain the correct viscosity for your oil and prevent heat damage to your components, improving your system's service life. The standard 1-inch screw threads make it easy to install into an existing hydraulic system and its compact size makes it a handy solution for use in tight spaces.
The cooler is suitable for high-pressure applications and offers a high flow rate of up to 100 L/min. Its Ingress Protection (IP) rating of IP64 means it's protected against dust and water spray from all directions, so it's suitable for use in harsh environments. You can use this unit for industrial applications such as hydraulic lifts, railway machinery and mobile cranes.

Features and Benefits

• Dimensions of 322.5 (height) x 277 (width) x 167 mm (depth)
• Maximum flow rate of 25 to 100 L/min
• Maximum operating pressure of 16 bar (dynamic), 25 bar (static)
• Thread size of 1 in
• BSP (British Standard Pipe) thread standard
• Voltage of 24 V DC
• Weight of 6 kg
