650-D-RR0-00000-1-G, Gefran 650 PID Temperature Controller, 48 x 48mm, 3 Output Logic, Relay, 100 → 240 V ac Supply Voltage, Регулятор температуры

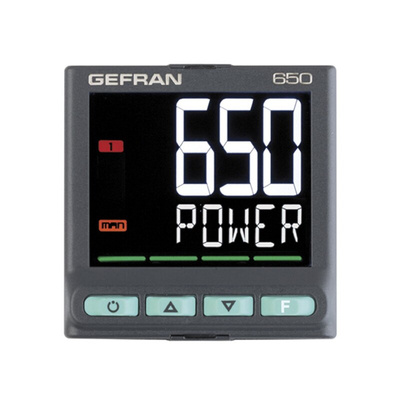

Gefran PID Temperature Controller

The Gefran 650 series temperature controller has supply voltage ranging from 100VAC to 240VAC. This controller has a width of 48mm and a height of 48mm (1/16 DIN) device. It has 2 relay outputs and 1 logic output. The controller is highly customisable and adapts to the user's application. The flexible customisation of the controller integrates perfectly with the look of the machine interface. The PID is clear and easy to read with the easy configuration for manual-free programming.

Features and Benefits

16 function block applications
Advanced tuning of control parameters
Different password levels
Easy, guided configuration, copy/paste parameters even with power-off
Operator interface with large LCD display, customizable, with choice of colours
Preventive maintenance with energy counters (kWh) and load switching
Relay, logic, isolated analogy outputs
Remote set point input
Removable faceplate for immediate replacement
RS485 serial communication in Modbus RTU
Sampling time 60ms
Scrolling diagnostics messages, configurable, in the selected language
Timer, set point and algorithm programmer for controlling motorized valves
Universal input configurable for thermocouples, resistance thermometers, linear inputs
Up to two CT inputs for interrupted load diagnostics

Certifications

CE certified
EAC
FM certified
UL approved

650 - 1250 - 1350 PID temperature controllers Manual

Datasheet 650
