1553116, Phoenix Contact Right Angle Female 4 way M8 to Sensor Actuator Cable, 20m, Кабельная сборка

Phoenix Contact Sensor Actuator Cable, 22AWG, 30V Voltage Rating - SAC-4P-20,0-PUR/M 8FR 0,34 - 1553116

Get your hands on an automation solution that can make connections over long distances with this sensor actuator cable from Phoenix Contact. It's 20m long, with a minimum bend radius of 10 times its 4.7mm diameter in flexible installations and 5 times its diameter in fixed installations. This means you can use it to connect sensors to I/O devices that are some distance apart or set in a complex system. Think automated agricultural equipment, industrial engineering and manufacturing plants.

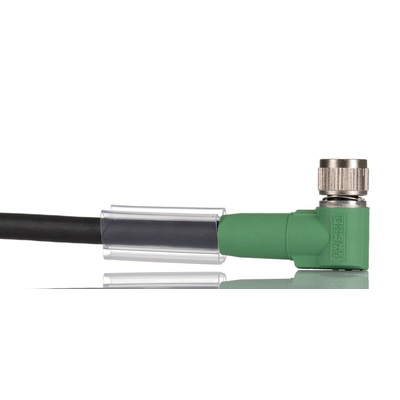

The cable has a female M8 connector at one end and four unterminated cores at the other, making it suitable for connecting sensitive measurement equipment to actuators. Its IP68 rating means you can rest assured that this product is fully protected against high-pressure water jets and continuous immersion, making it suitable for environments where regular washdowns happen.

• 30V voltage rating and 4A current rating mean it's suitable for low-power applications
• Bare copper litz conducting material is strong and highly conductive
• Resistant to oil for use in mechanical and industrial settings
• Halogen-free for enhanced health and safety

Our standard: robust halogen-free PUR cable
Easy and safe: 100% electrically tested plug-in components

Power cable for actuator voltage
System cable for supply voltage and bus signal
