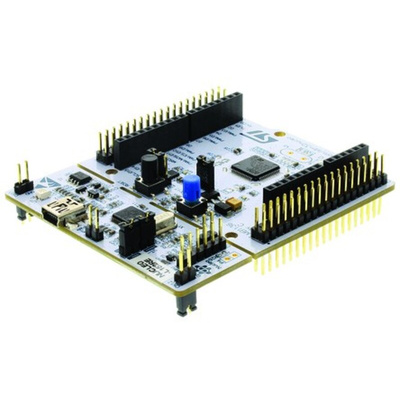

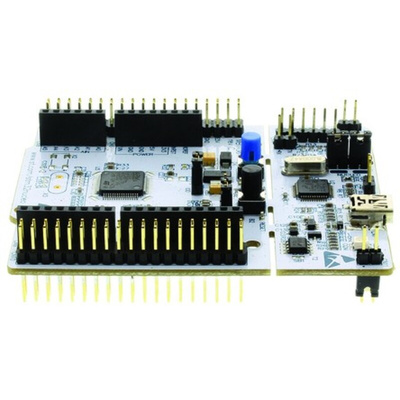

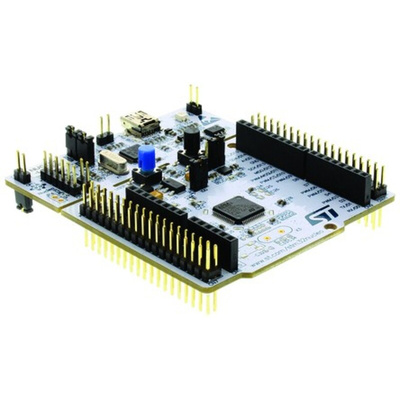

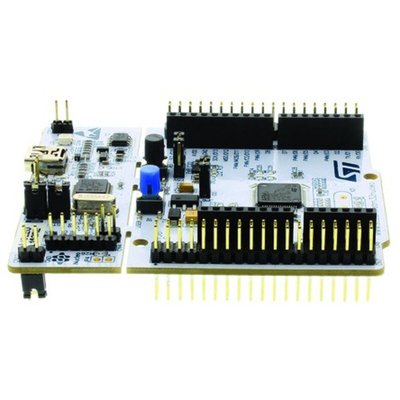

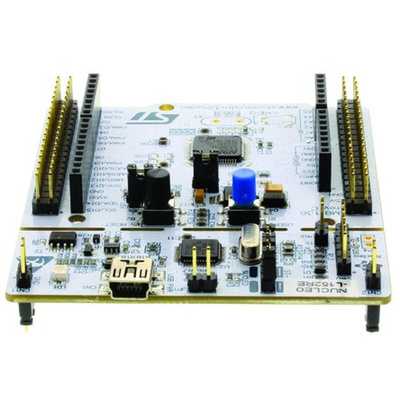

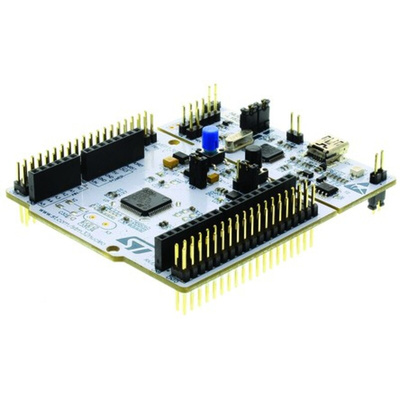

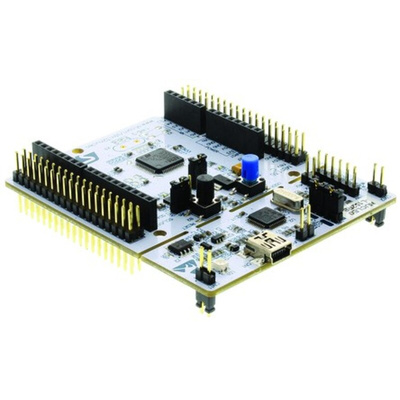

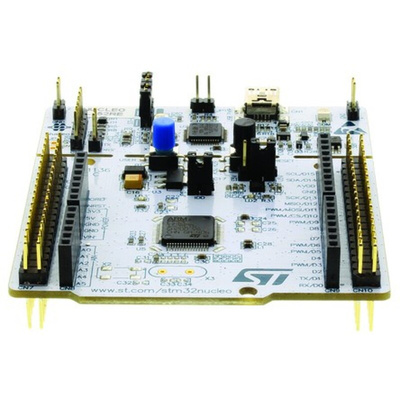

STMicroelectronics STM32 Nucleo-64 MCU Development Board NUCLEO-F303RE

STMicroelectronics NUCLEO MCU development Board

The STMicroelectronics STM32 NUCLEO-64 MCU development board is an affordable and flexible tool for users to try out new ideas and build prototypes. This can be done with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features. It has Arduino connectivity support along with ST Morpho headers adding to the convenience of expanding the functionality of the STM32 Nucleo open development platform. This is accompanied by a wide choice of specialized shields as well. It is an open-source design that can be used to create new prototypes.

Features and Benefits

The board does not require any separate probe as it integrates the ST-LINK/ V2-1 debugger and programmer
STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources
STM32 microcontroller with LQFP64 package
2 types of extension resources
Arduino Uno revision 3 connectivity
STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
Flexible board power supply like USB VBUS or external source (3.3V, 5V, 7V to 12V)
Power management access point
3 LEDs for USB communication (LD1), user LED (LD2) and power LED (LD3)
2 push buttons: USER and RESET
USB re-enumeration capability: three different interfaces supported on USB like Virtual Com port, mass storage and debug port
Supported by wide choice of integrated development environments (IDEs) including IAR, Keil and GCC-based IDEs

Applications

Embedded development
Educational institutions
Robotics
Internet of things
Human machine interface
Electronics laboratories
Automation

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

NUCLEO-xxxxRx, STM32 Nucleo-64 Boards Data Brief

STM32 Nucleo-64 Boards User Manual (UM1724)
