242209 PLSM-C32-MW, Eaton xPole MCB, 1P, 32A Curve C, 230V AC, 48V DC, 10 kA Breaking Capacity

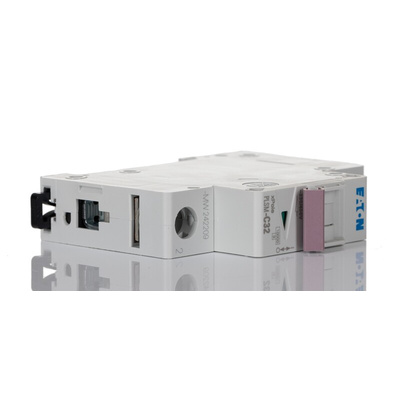

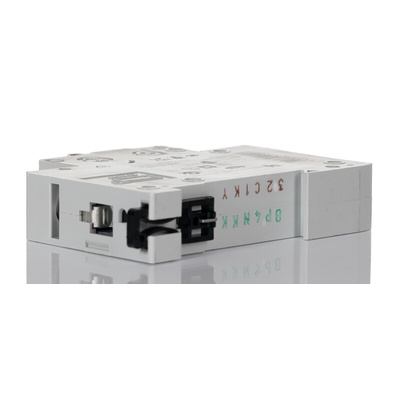

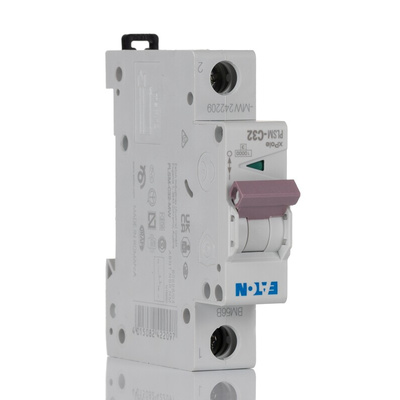

Eaton MCB, Single Pole, DIN Rail Mounting - PLSM Series - 242209 PLSM-C32-MW

Shut down abnormal electrical currents in a flash with this single-pole MCB from Eaton. With a 32A current rating and rated voltage of 48V DC, it handles high inrushes with ease. The unit has type-C characteristics, meaning it trips at five to ten times its rated current with a breaking capacity of 10kA. This makes it a smart choice for high-load applications, from small motors to fluorescent lighting. The breaker's easy to mount, too – just clip it directly onto your DIN rail without reaching for your toolkit.

Features & Benefits

• Contact position indicator lets you know what's going on at a glance
• Simple removal from the existing busbar thanks to three lock-in positions on the DIN rail clip
• Mechanical lifespan of 20,000 switching cycles means you can count on it for the long haul
• IP20 rating means it's touch-proof to reduce the risk of electric shocks

What size is this MCB?

The unit's compact dimensions of 75 (H) x 17.5 (W) x 80mm (D) make it a good fit for crowded circuit boards.

How much does this MCB weigh?

The unit weighs just 118g, so it won't put extra strain on your system.

Note

Eaton formerly known as Moeller

Moeller — circuit breaker

PLSM Series Datasheet

Instruction Sheet - MCBs, RCDs Series

Datasheet - 242209 PLSM-C32-MW
