242206 PLSM-C16-MW, Eaton xPole MCB, 1P, 16A Curve C, 230V AC, 48V DC, 10 kA Breaking Capacity

Eaton MCB, 60Hz Maximum Frequency Rating, 0.104kg Weight - xPole Series - 242206 PLSM-C16-MW

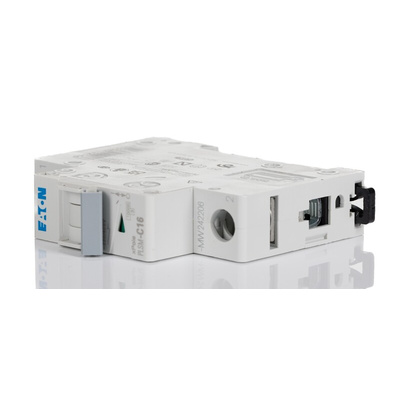

Keep your operation on the safe side with this MCB from Eaton. It's a single-pole device that automatically turns off the flow of current when it detects an overload or short circuit. A breaking capacity of 10kA means it can interrupt high current faults without being damaged, boosting protection against electrical fires. With a wide operating temperature range between -25°C and +75°C, the unit holds its own in challenging industrial environments. It has compact dimensions of 75 (H) x 17.5 (W) x 80mm (D) so you can slot it seamlessly into your setup. You'll typically find breakers like this one used in telecommunications systems to protect routers and switches.

Features & Benefits

• Type C tripping characteristics for use with high inrush currents, such as motors or transformers
• Green and red contact position indicators for quick identification
• IP20 rating indicates it's touch-proof and dust-resistant

Can I mount this MCB easily?

Yes, you can mount it in a jiffy by snapping it onto a standard 35mm DIN rail.

What's this MCB's current rating?

It has a 16A current rating, ensuring wide compatibility.

Note

Eaton formerly known as Moeller
