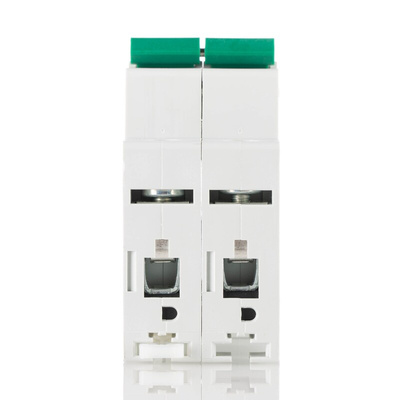

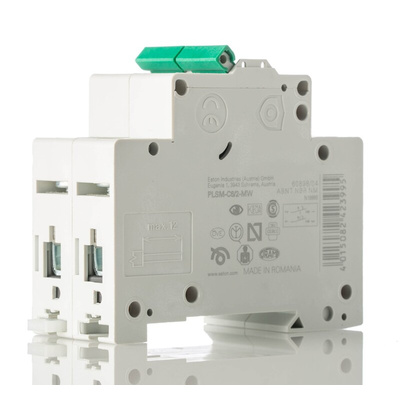

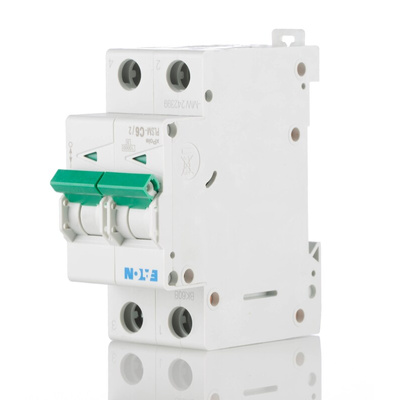

242399 PLSM-C6/2-MW, Eaton xPole MCB, 2P, 6A Curve C, 48V DC, 10 kA Breaking Capacity

PLSM MW Series, C Characteristic, 2 Pole

Versatile, safe and high-quality miniature circuit breakers for commercial and residential applications

Contact position indicator red - green
Guide for secure terminal connection
3-position DIN rail clip, permits removal from existing busbar system
Rated currents up to 63 A
Rated breaking capacity 10 kA according to IEC/EN 60898-1
Meets the requirements of insulation co-ordination, distance between contacts ≥ 4 mm, for secure isolation

Eaton Miniature Circuit Breaker, 48V DC Voltage Rating, 2 Poles - PLSM Series - 242399 PLSM-C6/2-MW

Protect your motor during a power failure or system breakdown with this miniature circuit breaker (MCB) from Eaton. It keeps you and your machinery safe by initiating a full system switch-off when a hazard is detected. To ensure safety while handling, the breaker has an IP20 (ingress protection) rating, meaning it's touch-proof and minimises the risk of electric shock. This rating also means that the unit is protected against wires and tools larger than 12mm in size. You can quickly install this MCB in your circuit thanks to its 3-position DIN rail clip. An MCB like this one is commonly used in applications such as production lines or automotive equipment.

• Compact dimensions of 45 (length) x 26.3mm (width) x 80mm (height) for easy handling
• Distance of more than or equal to 4mm between contacts to allow secure isolation of different connections
• Green contact position indicators for easy system status identification

How long will this MCB last?

This circuit breaker has a long lifespan of at least 20,000 mechanical cycles and at least 4,000 electrical cycles, making it a long-lasting choice.

Note

Eaton formerly known as Moeller

Moeller — circuit breaker
