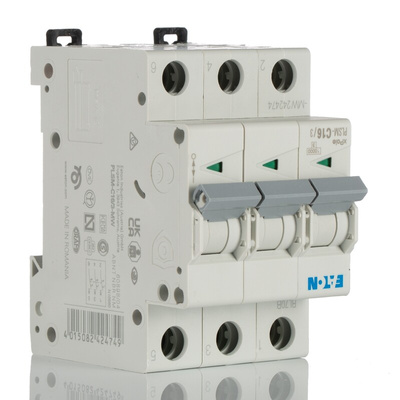

242474 PLSM-C16/3-MW, Eaton xPole MCB, 3P, 16A Curve C, 400V AC, 48V DC, 10 kA Breaking Capacity

PLSM MW Series, C Characteristic, 3 Pole

Versatile, safe and high-quality miniature circuit breakers for commercial and residential applications

Contact position indicator red - green
Guide for secure terminal connection
3-position DIN rail clip, permits removal from existing busbar system
Rated currents up to 63 A
Rated breaking capacity 10 kA according to IEC/EN 60898-1
Meets the requirements of insulation co-ordination, distance between contacts ≥ 4 mm, for secure isolation

Eaton 3-Pole MCB, 16A Current Rating, 10kA Breaking Capacity - PLSM Series - 242474 PLSM-C16/3-MW

Features & Benefits

• Operating temperature range of -25°C to +75°C for use in challenging settings
• Low heat dissipation of 6.9W for energy-efficiency
• IP20 rating indicates protection from objects larger than 12mm, including fingers
• DIN rail mounting style is simple and tool-free, saving time and effort

What's the voltage rating of this MCB?

This MCB has a rating of 400V, making it a good fit for low-voltage applications.

How do I terminate conductors to this MCB?

The MCB has screw terminals that make the connection of conductor cables quick and simple.

Note

Eaton formerly known as Moeller

Moeller — circuit breaker

PLSM Series Datasheet

Datasheet - 242474 PLSM-C16/3-MW
