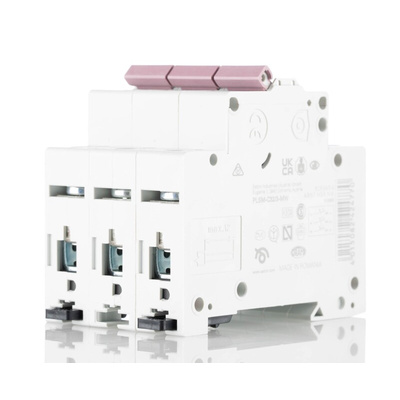

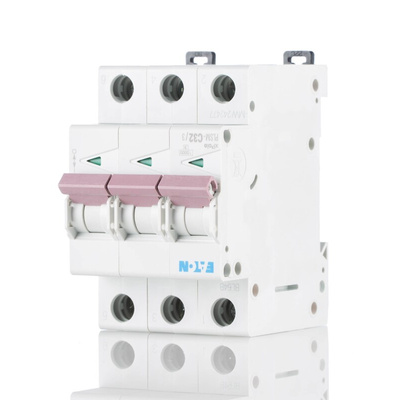

242477 PLSM-C32/3-MW, Eaton xPole MCB, 3P, 32A Curve C, 48V DC, 10 kA Breaking Capacity

PLSM MW Series, C Characteristic, 3 Pole

Versatile, safe and high-quality miniature circuit breakers for commercial and residential applications

Contact position indicator red - green
Guide for secure terminal connection
3-position DIN rail clip, permits removal from existing busbar system
Rated currents up to 63 A
Rated breaking capacity 10 kA according to IEC/EN 60898-1
Meets the requirements of insulation co-ordination, distance between contacts ≥ 4 mm, for secure isolation

Eaton MCB, 32A Current Rating, 48V DC Voltage Rating - PLSM Series - 242477 PLSM-C32/3-MW

Looking for a compact circuit-protection solution for your industrial equipment? Choose this mini circuit breaker from Eaton. With dimensions of 52.5 (L) x 80 (W) x 75mm (D), this unit is a good choice for setups with limited space. It has a thermoplastic body that provides impact resistance as well as insulation to protect you from electric shock. The breaker exhibits type C characteristics, which means that it trips when the supply current is five to 10 times the full load current of the circuit. This feature makes it useful for commercial and industrial applications such as fluorescent lighting and light-duty industrial motors.

• Broad operating temperature range of -25°C to +75°C for use in demanding conditions
• 400V rated voltage to suit low-voltage applications
• Rated impulse withstand voltage of 4kV to handle sudden power surges and improve electrical safety
• IP20 rating indicates that it's touch-proof and can withstand tools and objects greater than 12mm in size

What type of conductors can I connect to this MCB's terminals?

This MCB allows for the connection of both multi-wired and solid-core conductors. It can accommodate adapters with a cross-sectional area range of 1 to 25mm² for versatility.

Note

Eaton formerly known as Moeller

Moeller — circuit breaker

PLSM Series Datasheet
