280-833, Wago 280 Series Grey Feed Through Terminal Block, 2.5mm², Single-Level, Cage Clamp Termination

Through/Ground Conductor/Shield and Ex Terminal Blocks 2.5 mm

RS 864-8379, 864-8401 and 864-8423 are suitable for Ex applications

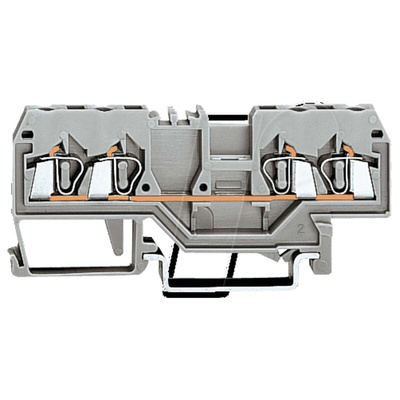

Wago Feed-Through Terminal Block, 4 x Connection Points, Front Entry Wiring - 280 Series - 280-833

Want to make fuss-free connections? Link wires in your electrical panel by passing them along this feed-through terminal block from Wago. It enables the transmission of power and signals from one cable to another. This unit features four connection points, so you'll have room to set up a multi-transmission system. With a current rating of 20A, it can safely handle the rigours of heavy-duty equipment. Mount it in a snap by clipping it to a TS35 DIN rail.

Features & Benefits

• Measured shock voltage of 8kV to withstand current surges
• Front-entry wiring for hassle-free cable assembly
• Durable PA housing has flame-retardant properties to help stop fires from spreading

Applications

• Chemical plants
• Medical and pharmaceutical industry
• Telecommunications
• Aerospace engineering

What cable sizes can I fit into this feed-through terminal block?

You can insert cables that range in size from 28 to 12 AWG for flexibility in your wiring.

How do I secure my wires to this component?

The block has cage clamp termination that lets you fasten your wires to the terminals without the need for tools.

280 Series

Datasheet
