LED100-02-01, Moflash LED100 Series Amber Flashing Beacon, 20 → 30 V ac/dc, Surface Mount, LED Bulb, IP65, Маячок

Moflash Industrial ECO LED Beacons - LED100 Series

The LED100 economy series is suitable for light commercial & industrial signalling applications where local indication is required. These beacons have two selectable stages of alarm, flashing or continuous (static) mode, selectable by a jumper link on the PCB. The design also allows for a third wire connection giving flexibility to switch from a pre-set static mode to flashing.
The ECO LED beacons have been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.
The design allows for termination inside the enclosure through the base.

Dual function, flashing or continuous (static) mode
Continuously rated
LED long life
Low current consumption
Suitable for surface, conduit box or wall mounting
Optional wall bracket & guard available
2 point fixing
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
160 flashes per minute (FPM)
IP65 protection
RoHS compliant
CE marked

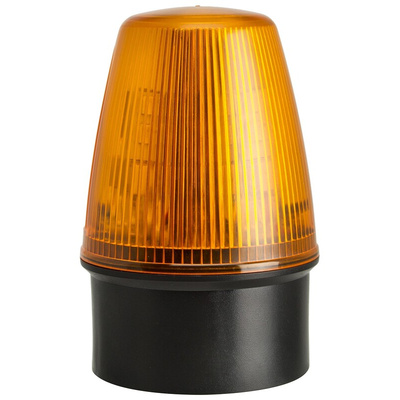

Moflash Amber Flashing LED Beacon, 20 to 30V AC/DC, Surface Mount - LED100 Series - LED100-02-01

This LED (light-emitting diode) beacon from Moflash is a straightforward solution for your signalling needs. Its rugged base is made of ABS (acrylonitrile butadiene styrene) that's hardwearing and corrosion-resistant to ensure a long service life. The beacon has two modes – flashing and static. You can switch between these by using the jumper link on the printed circuit board (PCB). The product's flexible design also allows for a third wire connection so you can change it to flashing from the pre-set static mode.

Features & Benefits

• Wide operating temperature range of -25°C and +55°C for use in demanding environments
• Low current consumption rate of 110mA for energy efficiency
• Surface, conduit box and wall mounting options for flexibility
• Compact base diameter of 72mm to fit into tight spaces
• IP67 (ingress protection) rating indicates it can withstand dust and water jets

Applications

• Construction sites
• Firetrucks
• Industrial machinery

How do I maintain this beacon?

This beacon is built with hardwearing components that are designed to stand the test of time. Apart from routine cleaning, there's no need to carry out any form of maintenance.

What does the amber colour stand for in signalling?

It can be used to give a safety warning sign or to indicate work in progress.
