LED100-01-04, Moflash LED100 Series Green Multiple Effect Beacon, 10 → 17 V ac/dc, Surface Mount, LED Bulb, IP65, Маячок

Moflash Industrial ECO LED Beacons - LED100 Series

The LED100 economy series is suitable for light commercial & industrial signalling applications where local indication is required. These beacons have two selectable stages of alarm, flashing or continuous (static) mode, selectable by a jumper link on the PCB. The design also allows for a third wire connection giving flexibility to switch from a pre-set static mode to flashing.
The ECO LED beacons have been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.
The design allows for termination inside the enclosure through the base.

Dual function, flashing or continuous (static) mode
Continuously rated
LED long life
Low current consumption
Suitable for surface, conduit box or wall mounting
Optional wall bracket & guard available
2 point fixing
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
160 flashes per minute (FPM)
IP65 protection
RoHS compliant
CE marked

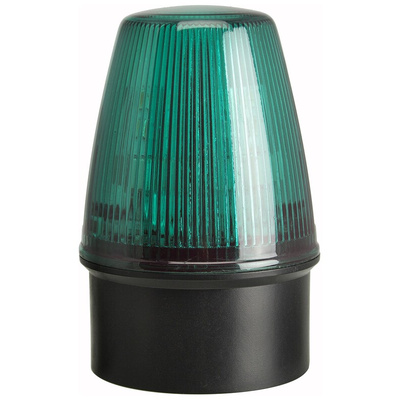

Moflash Beacon, Green Lens Colour, 430mA Current Consumption - LED100 Series - LED100-01-04

For effective signalling in commercial or industrial work areas, choose this green LED beacon from Moflash. For versatility, the jumper link on its PCB lets you switch between flashing and continuous light effects. This unit has a low current consumption of 430mA, so it's an energy-efficient choice. As the lens is made from UV-stable PC, this device can withstand use in direct sunlight.

Features & Benefits

• Broad operating temperature range between -25°C and +55°C for use in challenging environments
• High flash rate of 160FPM for an urgent signal
• IP65 rating indicates it's dust-tight and resistant to low-pressure water jets

Applications

• Mobile command centres
• Construction sites
• Emergency signalling

What are the dimensions of this beacon?

This beacon has compact dimensions of 107 (height) x 72mm (base diameter), so it will take up minimal space on your mounting surface.
