LED100-02-04, Moflash LED100 Series Green Flashing Beacon, 20 → 30 V ac/dc, Surface Mount, LED Bulb, IP65, Маячок

Moflash Industrial ECO LED Beacons - LED100 Series

The LED100 economy series is suitable for light commercial & industrial signalling applications where local indication is required. These beacons have two selectable stages of alarm, flashing or continuous (static) mode, selectable by a jumper link on the PCB. The design also allows for a third wire connection giving flexibility to switch from a pre-set static mode to flashing.
The ECO LED beacons have been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.
The design allows for termination inside the enclosure through the base.

Dual function, flashing or continuous (static) mode
Continuously rated
LED long life
Low current consumption
Suitable for surface, conduit box or wall mounting
Optional wall bracket & guard available
2 point fixing
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
160 flashes per minute (FPM)
IP65 protection
RoHS compliant
CE marked

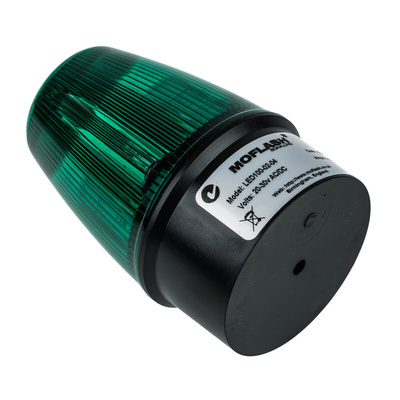

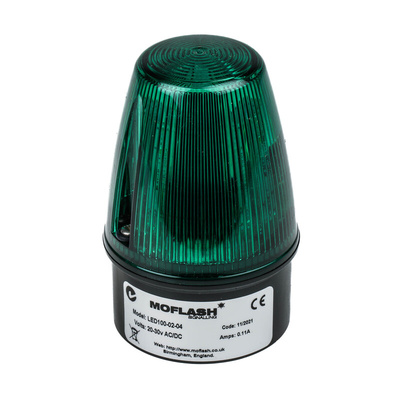

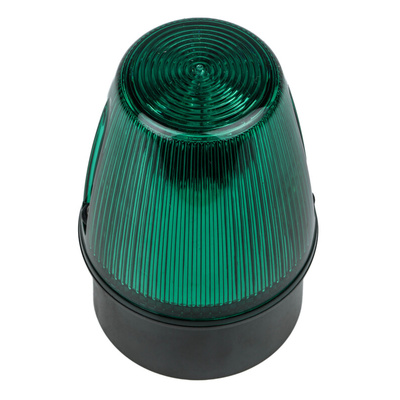

Moflash Green Flashing LED Beacon, 30V AC/DC, 72mm Base Diameter - LED100 Series - LED100-02-04

Choose this flashing LED (light-emitting diode) beacon from Moflash for a clear, reliable signalling solution for your working environment. The LED turns on and off at a constant rate of 160FPM (flashes per minute), providing a rapid visual alarm that effectively gets the attention of people working in the vicinity. The light comes with a green lens, commonly used to signal the beginning of a process in industrial or transport applications. This unit offers both flashing and static modes, so you can choose the mode that suits your application.

Features & Benefits

• 360° beam rotates on the vertical axis so it's visible throughout the surrounding area
• LED light uses 90% less power than incandescent bulbs for greater energy efficiency
• IP65 (ingress protection) rating for protection against dust and low-pressure water jets from any direction
• Wide operating temperature range of -25°C to +55°C for use in harsh industrial settings

Applications

• Maintenance vehicles
• Airport baggage claims
• Manufacturing lines
• Mechanical automation

Will the lens colour fade in direct sunlight?

The enclosure is made of UV (ultraviolet) stable materials, such as an ABS (acrylonitrile butadiene styrene) base and a PC (polycarbonate) lens. This means it won't fade in sunlight, making it safe to use outdoors.
