LED100-05-04, Moflash LED100 Series Green Flashing Beacon, 40 → 380 V dc, 85 → 285 V ac, Surface Mount, LED Bulb, IP65, Маячок

Moflash Green Multifunction LED Beacon, 85 to 280V AC, 72mm Base Diameter - LED100 Series - LED100-05-04

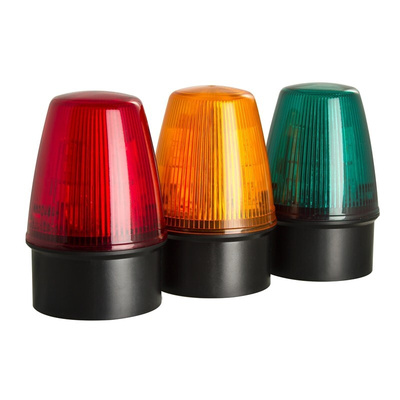

Use this green LED beacon from Moflash to indicate normal operating conditions in your work environment. To suit your application needs, you can set this multifunction beacon to a flashing or continuous light mode using a jumper link on its PCB (printed circuit board). This signaller is suitable for surface, conduit box or wall mounting thanks to its two base termination points, giving you flexible installation options. Its compact size of 33 (length) x 72 (diameter) x 107mm (height) makes it a good choice for installation in tight spaces.

Features & Benefits

• IP65 (ingress protection) rating for protection against dust and high-pressure water jets
• UV-stable PC (polycarbonate) lens to prevent warping or discolouration in direct sunlight
• Fast flash rate of 160 FPM (flashes per minute) to urgently draw attention

Applications

• Industrial signalling
• Factory equipment
• Processing plants

What’s the operating temperature of this beacon?

This beacon has a wide operating temperature range of -25°C to +55°C, making it suitable for use in both cold and hot environments.
