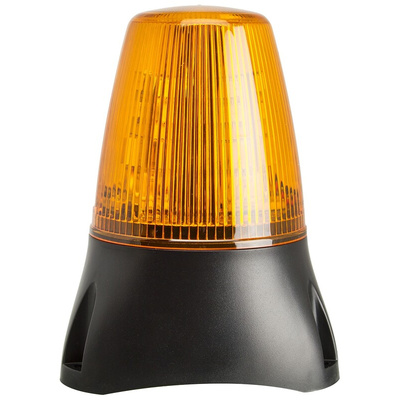

LEDA100-01-01, Moflash LEDA100 Series Amber Buzzer Beacon, 10 → 17 V, IP65, Surface Mount, Wall Mount, 80dB at 1 Metre

Moflash Industrial ECO LED Beacons with Piezo Buzzer - LEDA100 Series

The LEDA100 economy series incorporate a piezo buzzer, situated in the base of the unit, that is synchronised to the flash rate offering a combined audible & visual warning signal (Note: the buzzer cannot be controlled independently of the light).
These beacons have two selectable stages of alarm, flashing or continuous (static) mode, selectable by a jumper link on the PCB. The design also allows for a third wire connection giving flexibility to switch from a pre-set static mode to flashing.
The ECO LEDA beacons have been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.
The design allows for termination inside the enclosure through the base.

Dual function, flashing or continuous (static) mode
80 dB piezo buzzer which only activates with the flashing mode
Continuously rated
LED long life
Low current consumption
Suitable for surface, conduit box or wall mounting
3 point fixing
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
160 flashes per minute (FPM)
IP65 protection
RoHS compliant
CE Marked

Moflash Amber Buzzer Beacon, Surface or Wall Mount, 80dB - LEDA100 Series - LEDA100-01-01

This buzzer beacon from Moflash provides visual and audible notification of situations that require immediate attention, such as fire or chemical contamination. You can mount it on a surface, conduit box or wall. Choose from two selectable visual alarm stages – flashing or continuous (static) mode. This beacon uses an LED (light-emitting diode) bulb as its visual signal. This makes it an energy-efficient and long-lasting option that calls for little maintenance. The unit's design lets you terminate the electrical connection inside the enclosure through the base.

Features and Benefits

• High sound level of 80dB at 1 metre so it can be heard above ambient noise
• IP65 (ingress protection) rating for protection against dust and water jets
• Operating temperature range of -25°C to +55°C makes it suitable for use in extreme conditions
• Supply voltage of 8 to 20V AC/DC, giving a wide range of supply options

Application Information

• Manufacturing
• Commercial electrical cable installations
• Warehouses

How loud is 80dB?

A sound level of 80dB is approximately equal to the noise that a petrol lawnmower would make, so it's clearly noticeable.

LED/Buzzer
