LEDA100-02-01, Moflash LEDA100 Buzzer Beacon 80dB, Amber LED, 20 → 30 V ac/dc, IP65

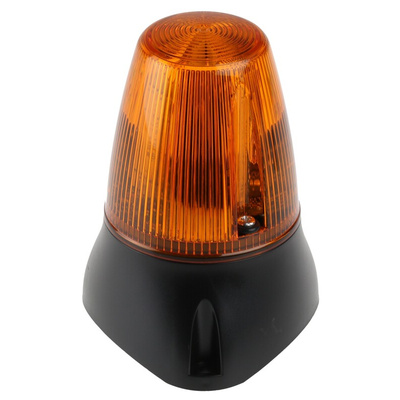

Moflash Buzzer Beacon

The Moflash buzzer beacon is a piece of new-age equipment with an amber lens. It is a cost-effective solution for local signalling applications that require long life and low maintenance . It incorporates a piezo buzzer, situated in the base of the unit with a sound output of 80dB. This is synchronised to the flash rate offering a combined audible and visual warning signal. This beacon has two selectable stages of alarm, flashing or continuous (static) mode, selectable by a jumper link on the PCB. The design also accommodates a third wire connection giving the flexibility to switch from a pre-set static mode to flashing.
Note:
The buzzer cannot be controlled independently of the light.

Features and Benefits

The supply voltage is between 20VAC/DC and 30AC/DC
Piezo buzzer that activates with the flashing mode
Continuously rated
Long life LED
Low current consumption

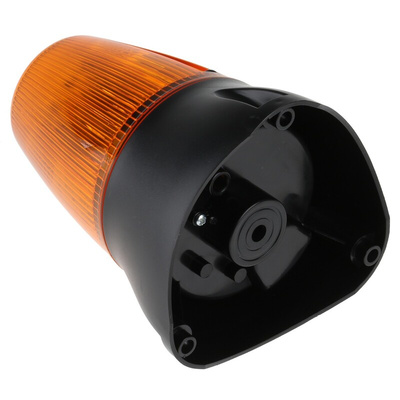

Suitable for surface, conduit box or wall mounting
3 point fixing
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
160 flashes per minute (FPM)
Operating temperature ranges between -250C and 550C

Certifications

IP65 rated
CE certified
