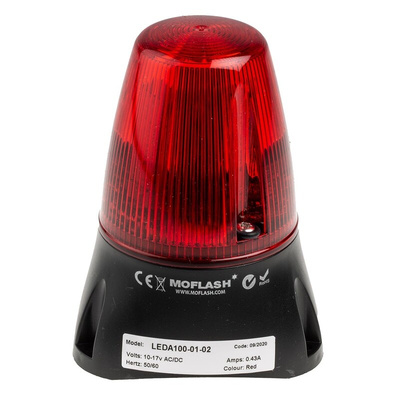

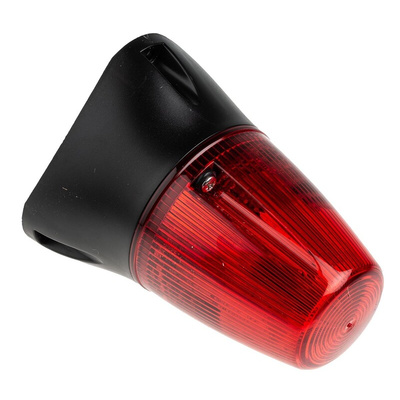

LEDA100-01-02, Moflash LEDA100 Series Red Buzzer Beacon, 10 → 17 V ac/dc, IP65, Surface Mount, Wall Mount, 80dB at 1 Metre

Moflash Industrial ECO LED Beacons with Piezo Buzzer - LEDA100 Series

The LEDA100 economy series incorporate a piezo buzzer, situated in the base of the unit, that is synchronised to the flash rate offering a combined audible & visual warning signal (Note: the buzzer cannot be controlled independently of the light).
These beacons have two selectable stages of alarm, flashing or continuous (static) mode, selectable by a jumper link on the PCB. The design also allows for a third wire connection giving flexibility to switch from a pre-set static mode to flashing.
The ECO LEDA beacons have been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.

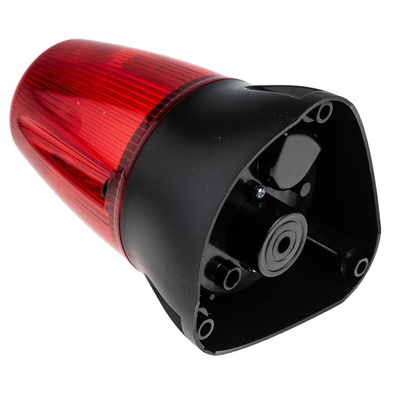

The design allows for termination inside the enclosure through the base.

Dual function, flashing or continuous (static) mode
80 dB piezo buzzer which only activates with the flashing mode
Continuously rated
LED long life
Low current consumption
Suitable for surface, conduit box or wall mounting
3 point fixing
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
160 flashes per minute (FPM)
IP65 protection
RoHS compliant
CE Marked

Moflash Red Flashing LED Buzzer Beacon, 80dB, 8 to 20V AC/DC - LEDA100 Series - LEDA100-01-02

This red LED (light-emitting diode) buzzer beacon from Moflash is an effective signalling device for your commercial or industrial workplace. It combines a piezo buzzer with a light to provide simultaneous audible and visual alerts. The red light is easy to see in case of emergency or machine malfunction, allowing workers to respond quickly and return conditions to safety. You can choose between static and flashing modes for your light signal.

Features & Benefits

• IP65 (ingress protection) rating indicates dust-tight construction and protection against jets of water
• Maximum temperature of +55°C and a minimum temperature of -25°C for use in demanding environments
• Supply voltage of 8 to 20V offers ample capacity
• Mounts easily on any flat surface or wall with screws

Applications

• Food processing and packaging operations
• Fire trucks and emergency vehicles
• Automated systems

What is a piezo buzzer?

A piezo buzzer is a device that uses the piezoelectric effect. This creates electricity through applied pressure and latent heat, which is then converted into sound for alerts. It's an energy-efficient way to keep your workplace safe and secure.
