LEDA100-02-04, Moflash LEDA100 Series Green Buzzer Beacon, 20 → 30 V ac/dc, IP65, Surface Mount, Wall Mount, 80dB at 1 Metre

Moflash Industrial ECO LED Beacons with Piezo Buzzer - LEDA100 Series

The LEDA100 economy series incorporate a piezo buzzer, situated in the base of the unit, that is synchronised to the flash rate offering a combined audible & visual warning signal (Note: the buzzer cannot be controlled independently of the light).
These beacons have two selectable stages of alarm, flashing or continuous (static) mode, selectable by a jumper link on the PCB. The design also allows for a third wire connection giving flexibility to switch from a pre-set static mode to flashing.
The ECO LEDA beacons have been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.
The design allows for termination inside the enclosure through the base.

Dual function, flashing or continuous (static) mode
80 dB piezo buzzer which only activates with the flashing mode
Continuously rated
LED long life
Low current consumption
Suitable for surface, conduit box or wall mounting
3 point fixing
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
160 flashes per minute (FPM)
IP65 protection
RoHS compliant
CE Marked

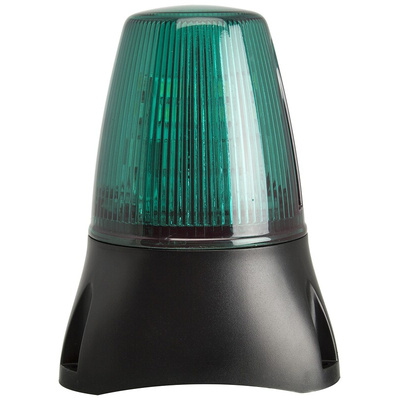

Moflash Green LED Buzzer Beacon, 80dB, 20 to 30V AC/DC- LEDA100 Series - LEDA100-02-04

Use this green buzzer beacon from Moflash for an effective visual and audible alert in your workplace. The LED light flashes at a rate of 160FPM (flashes per minute) to produce an urgent signal. For versatility, you can switch between a flashing mode and a steady mode using the jumper link on the PCB (printed circuit board). The piezo buzzer has a loud sound output of 80dB (decibels) at a distance of 1m, so it's easy to hear in busy work environments. This buzzer beacon is an energy-efficient choice thanks to its low current consumption of 110mA at 24V DC.

Features & Benefits

• 360° light output around its vertical axis for visibility from all angles
• IP65 (ingress protection) rating means it's dust-tight and protected against low-pressure water jets
• PC (polycarbonate) lens and ABS (acrylonitrile butadiene styrene) base are durable and impact-resistant
• Suitable for surface, conduit box or wall mounting for flexible installation

Applications

• Production plants
• Industrial equipment operation
• Switch cabinet construction

Can I use this buzzer beacon in extreme temperatures?

Yes. This buzzer beacon has a broad operating temperature range between -25°C and +55°C, so you can use it in harsh conditions.

LED/Buzzer
