LEDA100-05-02, Moflash LEDA100 Buzzer Beacon 80dB, Red LED, 40 → 380 V dc, 85 → 285 V ac, IP65

Moflash Buzzer Beacon

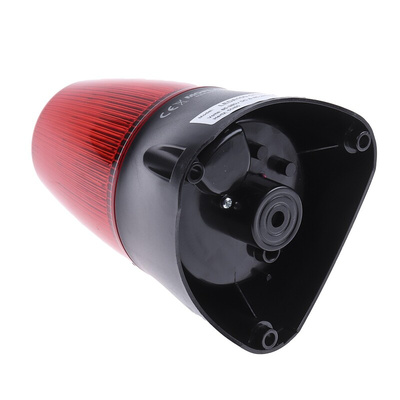

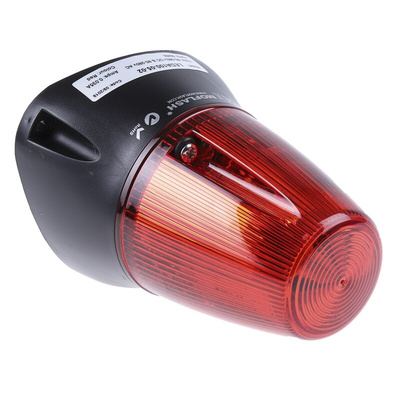

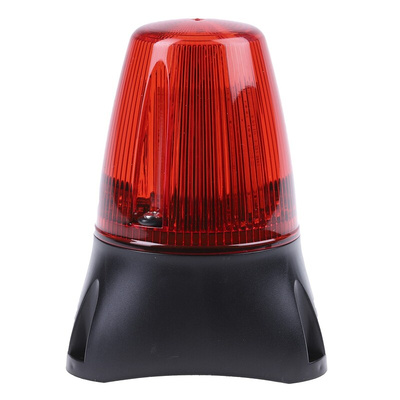

The Moflash buzzer beacon is a piece of new-age equipment with a red lens. It is a cost-effective solution for local signalling applications that require long life and low maintenance. It incorporates a piezo buzzer, situated in the base of the unit with a sound output of 80dB. This is synchronised to the flash rate offering a combined audible and visual warning signal. This beacon has two selectable stages of alarm, flashing or continuous (static) mode, selectable by a jumper link on the PCB. The design also accommodates a third wire connection giving the flexibility to switch from a pre-set static mode to flashing.
Note:
The buzzer cannot be controlled independently of the light.

Features and Benefits

The supply voltage is 85VDC to 380VDC and 85VAC to 285VAC
Piezo buzzer that activates with the flashing mode
Continuously rated
Long life LED
Low current consumption
Suitable for surface, conduit box or wall mounting
3 point fixing
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
160 flashes per minute (FPM)
Operating temperature ranges between -25°C and 55°C

Certifications

IP65 rated
CE certified
