LEDA100-05-04, Moflash LEDA100 Series Green Buzzer Beacon, 85 → 280 V ac, 85 → 380 V dc, IP65, Surface Mount, 80dB at 1

Moflash Industrial ECO LED Beacons with Piezo Buzzer - LEDA100 Series

The LEDA100 economy series incorporate a piezo buzzer, situated in the base of the unit, that is synchronised to the flash rate offering a combined audible & visual warning signal (Note: the buzzer cannot be controlled independently of the light).
These beacons have two selectable stages of alarm, flashing or continuous (static) mode, selectable by a jumper link on the PCB. The design also allows for a third wire connection giving flexibility to switch from a pre-set static mode to flashing.
The ECO LEDA beacons have been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.

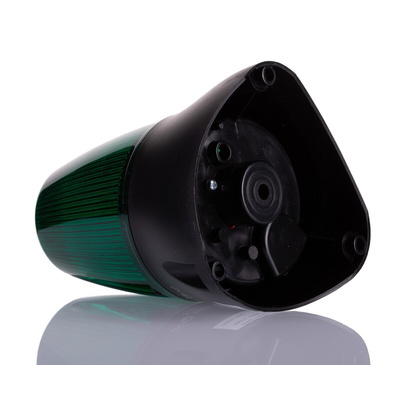

The design allows for termination inside the enclosure through the base.

Dual function, flashing or continuous (static) mode
80 dB piezo buzzer which only activates with the flashing mode
Continuously rated
LED long life
Low current consumption
Suitable for surface, conduit box or wall mounting
3 point fixing
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
160 flashes per minute (FPM)
IP65 protection
RoHS compliant
CE Marked

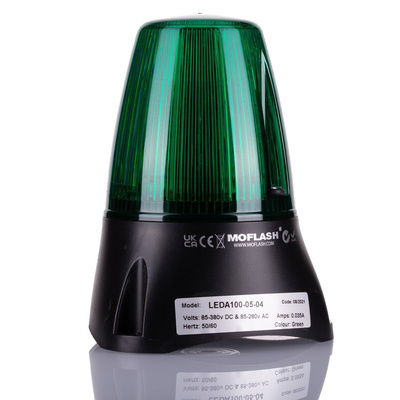

Moflash Beacon-Buzzer Combination, Green Lens Colour, 80dB Sound Output - LEDA100 Series - LEDA100-05-04

Choose this Moflash beacon-buzzer combination for effective signalling in hazardous areas. Its integrated piezo buzzer has a loud sound output of 80dB for a highly audible alert. The jumper link on the PCB allows you to select a flashing or continuous light effect for versatility. The unit's black base is made from UV-stable ABS for durability in direct sunlight.

Features & Benefits

• Light output of 360° around the vertical axis for increased visibility
• IP65 rating means it's protected against dust and low-pressure water jets
• Wide operating temperature range between -25°C and +55°C for use in demanding environments
• Designed for surface or wall mounting for versatile installation

Applications

• Production lines
• Loading bays
• Construction sites

Does this unit consume a lot of energy?

This unit has a low current consumption of just 35mA, making it an energy-efficient signalling solution.

LED/Buzzer
