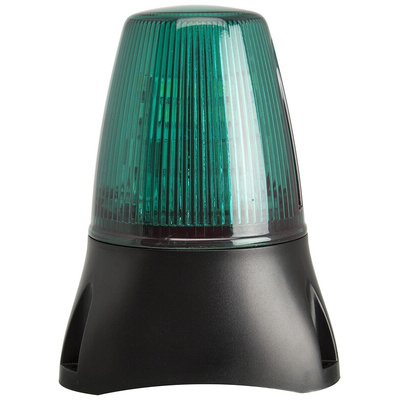

LEDD100-02-04, Moflash LEDD100 Series Green Flashing Beacon, 20 → 30 V ac/dc, Surface Mount, LED Bulb, IP65, Маячок

Moflash Industrial ECO LED Beacons - LEDD100 Series

The LEDD100 economy series are suitable for light commercial & industrial signalling applications where local indication is required. These beacons have two selectable stages of alarm, flashing or continuous (static) mode, selectable by a jumper link on the PCB. The design also allows for a third wire connection giving flexibility to switch from a pre-set static mode to flashing.
The ECO LEDD beacons have been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.
The design allows for termination inside the enclosure through the base.

Dual function, flashing or continuous (static) mode
Continuously rated
LED long life
Low current consumption
Suitable for surface, conduit box or wall mounting
3 point fixing
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
160 flashes per minute (FPM)
IP65 protection
RoHS compliant
CE Marked

Moflash Beacon, Multiple Light Effects, Green Lens Colour - LEDD100 Series - LEDD100-02-04

Use this green beacon from Moflash as a safety signalling solution for your commercial and industrial spaces. For versatility, you can choose between flashing and static light effects using the jumper link on the PCB. The beacon has a low current consumption of 110mA for energy efficiency. A light weight of 0.14kg means it won't place too much strain on your equipment.

Features & Benefits

• IP65 rating means it's dust-tight and resistant to low-pressure water jets
• PC lens and ABS base are UV-stable to minimise damage from direct sunlight
• Wide operating temperature range of -25°C to +55°C for use in demanding environments

Applications

• Warehouses and storage
• Process control
• Materials handling
• Building security and safety

How do I mount this beacon?

This beacon is suitable for wall or surface mounting and has three fixing points for secure installation.
