LEDD100-05-01, Moflash LEDD100 Series Amber Flashing Beacon, 85 → 280 V ac, 85 → 380 V dc, Surface Mount, LED Bulb, IP65, Маячок

Moflash Industrial ECO LED Beacons - LEDD100 Series

The LEDD100 economy series are suitable for light commercial & industrial signalling applications where local indication is required. These beacons have two selectable stages of alarm, flashing or continuous (static) mode, selectable by a jumper link on the PCB. The design also allows for a third wire connection giving flexibility to switch from a pre-set static mode to flashing.
The ECO LEDD beacons have been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.
The design allows for termination inside the enclosure through the base.

Dual function, flashing or continuous (static) mode
Continuously rated
LED long life
Low current consumption
Suitable for surface, conduit box or wall mounting
3 point fixing
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
160 flashes per minute (FPM)
IP65 protection
RoHS compliant
CE Marked

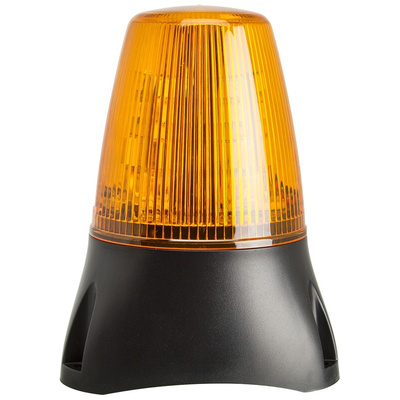

Moflash Amber Flashing LED Beacon, 85 to 280V AC, Surface Mount - LEDD100 Series - LEDD100-05-01

Choose this weatherproof LED (light-emitting diode) beacon from Moflash to meet your signalling needs. It features 36 LED lamps, which are installed directly onto the beacon's printed circuit board (PCB) via surface mounting technology (SMT). The beacon has a durable polycarbonate lens in an amber colour that's used as a warning signal. You can select from two modes for the alarm, either static or flashing – simply use the jumper link on the PCB to alternate between them. As the lens is UV stable, it won't degrade in sunlight so you can use this component outdoors.

Features & Benefits

• Acrylonitrile butadiene styrene (ABS) base material for corrosion and impact resistance
• Flexible alternative current (AC) and direct current (DC) power options
• Low current consumption of 120mA for energy efficiency
• Flash rates of 60 flashes per minute (fpm) and 120fpm for optimal alarm signalling
• IP65 (ingress protection) rating indicates it can withstand dust and high-pressure water jets

Applications

• Utility vehicles
• Agricultural equipment
• Ambulances

What's the supply voltage range of this beacon?

The supply voltage range of this component is between 85V to 280V AC and 85V to 380V DC.

What's the average service life of LED lamps?

You can expect to use LED lamps for around 30,000 hours.
