LEDD100-02-02, Moflash LEDD100 Series Red Flashing Beacon, 20 → 30 V ac/dc, Surface Mount, LED Bulb, IP65, Маячок

Moflash Industrial ECO LED Beacons - LEDD100 Series

The LEDD100 economy series are suitable for light commercial & industrial signalling applications where local indication is required. These beacons have two selectable stages of alarm, flashing or continuous (static) mode, selectable by a jumper link on the PCB. The design also allows for a third wire connection giving flexibility to switch from a pre-set static mode to flashing.
The ECO LEDD beacons have been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.

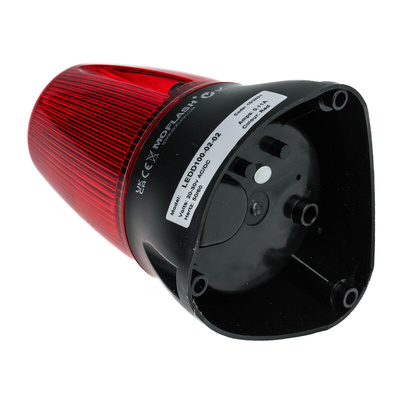

The design allows for termination inside the enclosure through the base.

Dual function, flashing or continuous (static) mode
Continuously rated
LED long life
Low current consumption
Suitable for surface, conduit box or wall mounting
3 point fixing
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
160 flashes per minute (FPM)
IP65 protection
RoHS compliant
CE Marked

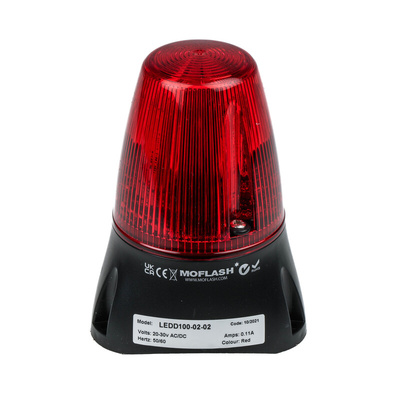

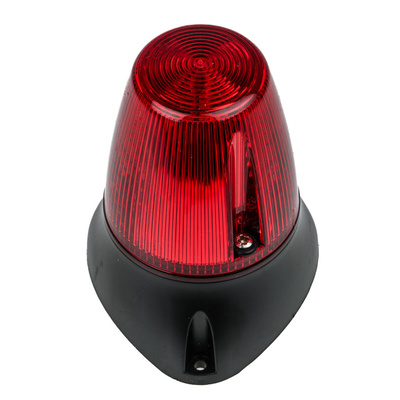

Moflash Red Flashing LED Beacon, 30V AC/DC, 90mm - LED100 Series - LED100-02-02

This Moflash red LED (light-emitting diode) beacon provides clear, sustainable signalling for your light commercial and industrial applications. The beacon has two alarm stages for added versatility, and you can easily switch between them using the jumper link on the internal PCB (printed circuit board). The flashing mode provides a rapid signal at 165FPM (flashes per minute) to attract the attention of people in the immediate vicinity, while the steady mode emits a constant, highly visible light. The lens is UV (ultraviolet) stable to help the beacon withstand direct sunlight in outdoor applications.

Features & Benefits

• IP65 (ingress protection) rating ensures the beacon is both dust-proof and protected against low-pressure water jets
• A third wire connection terminal allows for convenient remote switching between modes
• Low current consumption of 110mA for energy-efficient operation

Applications

• Food and beverage industry
• Pharmaceutical industry
• Rail and transport
• Mining and quarrying

How do I mount this beacon?

This beacon is designed for surface mounting on a conveyor, a vehicle, a conduit box or a wall using the three built-in fixing points.
