LEDS100-01-01, Moflash LEDS100 Series Amber Flashing Beacon, 10 → 17 V ac/dc, Surface Mount, LED Bulb, IP65, Маячок

Moflash Industrial ECO LED Beacon - LEDS100 Series

The LEDS100 economy series are suitable for light commercial & industrial signalling applications where local indication is required. These beacons have two selectable stages of alarm, flashing or continuous (static) mode, selectable by a jumper link on the PCB. The design also allows for a third wire connection giving flexibility to switch from a pre-set static mode to flashing.
The ECO LEDS beacons have been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.
This design allows for termination inside the enclosure through the base of the beacon, either from directly below or using a 6mm cabling channel at 90° to the base for surface cabling. The LEDS incorporates two mounting studs 2 x 5mm on 45mm centres.

Dual function, flashing or continuous (static) mode
Continuously rated
LED long life
Low current consumption
Suitable for surface, conduit box or wall mounting
2 stud fixing
360° light output around the vertical axis
Dustproof and weatherproof
UV stable polycarbonate lens
UV stable ABS plastic base
160 flashes per minute (FPM)
IP65 protection
RoHS compliant
CE Marked

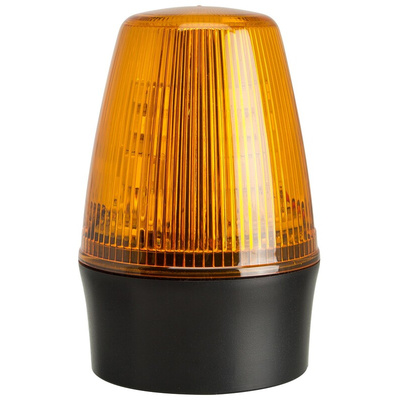

Moflash Beacon, Multiple Light Effects, Amber Lens Colour - LEDS100 Series - LEDS100-01-01

Reliably signal changing circumstances or possible hazards in your work environment with this amber multifunction beacon from Moflash. Its LED bulbs make it highly visible in most lighting conditions. You can conveniently change between flashing and continuous light effects using a jumper link on the PCB, making it a versatile choice. A 360° beam output around the vertical axis offers improved visibility from all angles.

Features & Benefits

• UV-stable polycarbonate lens and ABS base for outdoor use
• Broad operating temperature range between -25°C and +55°C for use in harsh environments
• Low current consumption of 430mA for energy-efficient operation

Applications

• Warehouses
• Automated industrial applications
• Construction industry
• Marine operations

Is this beacon water-resistant?

This beacon has an IP65 rating, meaning it's completely dust-tight and resistant to low-pressure water jets.
