LED-TLM-02-02, Moflash LED-TLM Series Red Steady Effect Beacon Unit, 24 V dc, LED Bulb, DC, IP65

Moflash TLM Modular Signal Tower

The LED-TLM signal towers are ideally suited for status indication in light commercial & industrial signalling applications where a local signal is required. They have two selectable stages of alarm, flashing or continuous (static) mode, selectable by a slide switch on the PCB.
The ECO LED-TLM signal towers have been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.
The design is modular and is easily assembled. Colour modules are supplied with quick fix termination that simply pushes into the male terminal in the module below to make a connection.
The range also comes with an audible module option that can be fitted anywhere in the modular stack

Features and Benefits

• Beacon units are dual function, flashing or continuous (static) mode
• Sounder unit output: 80 - 120 dB
• Continuously rated
• LED long life
• Low current consumption
• Suitable for surface mounting
• 360° light output around the vertical axis
• Dustproof and weatherproof
• UV stable polycarbonate lens
• UV stable ABS plastic base
• 60 flashes per minute (FPM)
• IP54/65 protection
• RoHS compliant
• CE Marked

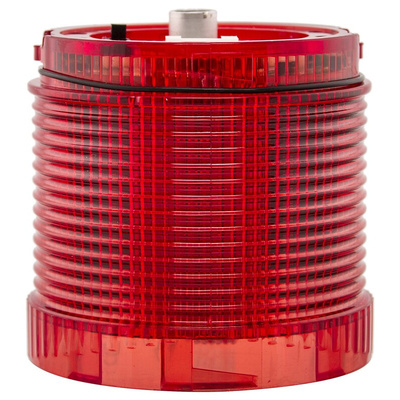

Moflash Red LED Beacon Unit, 24V DC, 56mm Height - LED-TLM Series - LED-TLM-02-02

This beacon unit from Moflash provides high-quality sound and visual signalling to improve safety in commercial and industrial environments. It consists of 18 surface-mounted LED (light-emitting diode) lamps that deliver a bright light that's visible in most lighting conditions. The red lens colour makes this beacon unit easily recognisable as a warning light. As the PC (polycarbonate) lens material is impact-resistant and ultraviolet-stable, it's a good choice for use in demanding indoor and outdoor environments.

Features & Benefits

• ABS (acrylonitrile butadiene styrene) base material for resistance to impact and wear
• IP65 (ingress protection) rating certifies the unit is dust-tight and protected from low-pressure water jets
• Wide operating temperature range of -25°C to +55°C for use in demanding environments
• Modular design allows for stacking with other beacons and sounders in the LED-TLM series for a complete signalling system

Applications

• Heavy industrial equipment
• Firetrucks
• Safety systems

How many alarm modes does this beacon have?

This versatile beacon has two alarm modes: flashing or continuous. You can select between these modes using the slide switch on the PCB (printed circuit board), making it easy to use.
