LED-TLM-AUD-02, Moflash LED-TLM Series Sounder unit for Use with MED TLM Eco Tower Light, 24 V dc, DC, IP65

Moflash TLM Modular Signal Tower

The LED-TLM signal towers are ideally suited for status indication in light commercial & industrial signalling applications where a local signal is required. They have two selectable stages of alarm, flashing or continuous (static) mode, selectable by a slide switch on the PCB.
The ECO LED-TLM signal towers have been designed predominantly to offer a cost effective solution against more traditional incandescent types of lamps, whether through new plant and machinery installations or existing facility upgrades.
The design is modular and is easily assembled. Colour modules are supplied with quick fix termination that simply pushes into the male terminal in the module below to make a connection.
The range also comes with an audible module option that can be fitted anywhere in the modular stack

Features and Benefits

• Beacon units are dual function, flashing or continuous (static) mode
• Sounder unit output: 80 - 120 dB
• Continuously rated
• LED long life
• Low current consumption
• Suitable for surface mounting
• 360° light output around the vertical axis
• Dustproof and weatherproof
• UV stable polycarbonate lens
• UV stable ABS plastic base
• 60 flashes per minute (FPM)
• IP54/65 protection
• RoHS compliant
• CE Marked

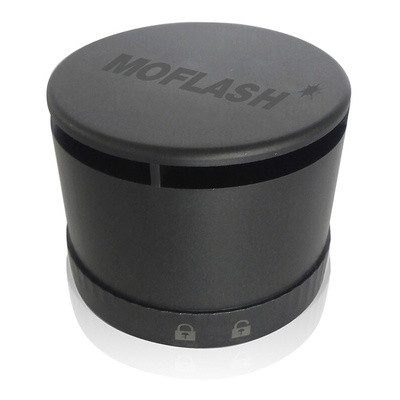

Moflash Sounder Unit, 24V DC, 100dB Sound Output - LED-TLM-AUD-02

Choose this sounder unit from Moflash for effective audio signalling in the event of an emergency or change in operating conditions. Thanks to its loud sound output of up to 100dB (decibels), it's easy to hear in busy environments. The beacon's acrylonitrile butadiene styrene (ABS) base is hard-wearing and resistant to corrosion, so you can count on it to last a long time. This sounder has a low current consumption of just 55mA, making it an energy-efficient choice.

Features & Benefits

• IP65 (ingress protection) rating certifies the unit is dust-tight and protected from low-pressure water jets
• Wide operating temperature range of -25°C to +55°C for use in demanding environments

Applications

• Office environments
• Heavy-duty industrial equipment
• Assembly lines

Can I integrate this sounder with other signalling components?

Yes. This sounder has a modular design, which means you can stack it with beacons from the LED-TLM series to create a signal tower with visual and audible warning signals. The components in this series have quick-fix terminations that push into another module for fast and simple assembly.

Datasheet

Moflash Signalling Product Range
