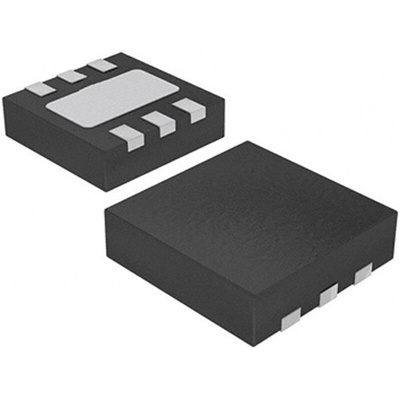

Si7020-A20-GM1, Silicon Labs Temperature & Humidity Sensor, Digital Output, Surface Mount, Serial-I2C, ±0.4 °C, ±4%RH, 6 Pins, Датчик температуры и влажности

Si70xx/Si701x/Si702x Digital Humidity & Temperature Sensors

The Si70xx/Si701x/Si702x series of digital humidity & temperature sensors integrates a humidity sensor, temperature sensor, I²C serial interface, calibration and on-chip signal conditioning in one compact QFN/DFN CMOS package.

When air comes into contact with the exposed polymide sensor, moisture in the air causes a capacitance change in the sensor resulting in the on-chip conditioning converting this to a humidity reading. This is then made available to the user over the I²C interface.

Applications include asset and goods tracking, laptops, tablets, PLC and I/O modules, smart phones, thermostats, humidistats, wireless sensing, detection of gas, fire, smoke and water, ventilation and air conditioning.

Features;
Wide operating voltage range : 1.9 V to 3.6 V
Low power
I²C serial interface
On-chip heater
Great long term stability
Fully calibrated
Pre-installed protective filter

Temperature & Humidity Sensors, Silicon Laboratories

Si7020-A20, I²C Humidity and Temperature Sensor
