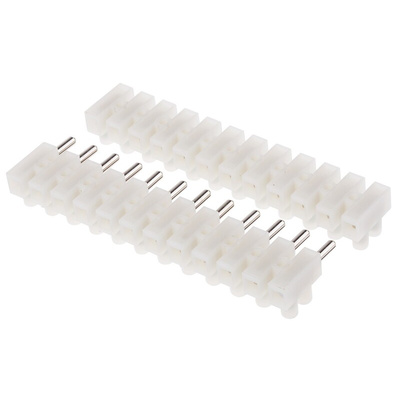

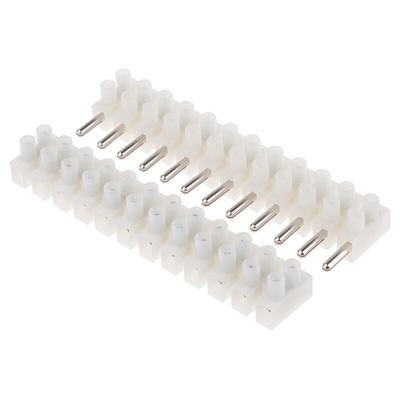

RS PRO Non-Fused Terminal Block, 12-Way, 3 → 24A, 12 AWG Wire, Screw Termination

RS PRO 12 Way Non-Fused Terminal Block, 12 AWG, 3 – 24 A, 4 mm², Screw Terminals, Polyamide, 450 V

You can connect 12 pairs of wires in this RS PRO terminal block. Use this product to insulate and join open cables to create an uninterrupted electrical current.
The horizontal plugs allow you to separate and reattach the two opposing panels so it's easier to manipulate and attach wires. Detaching these panels also cuts the transfer of electricity preventing shocks. The polyamide (PA) construction makes the unit flame-retardant so it won't easily ignite or be a source of fuel for spreading fires. Captive and raised screw clamps tightly connect wires so you can be sure they won't get loose through bumps or vibrations.
This product carries Verband der Elektrotechnik (VDE) approval that guarantees the quality and safety of the product. You can use it for electrical connections in garages, workshops and factories.

Features and Benefits

• Cable CSA (Cross-Sectional Area) of 4 mm²
• Natural colour
• Brass contact material
• Nickel contact plating
• Current rating of 3 to 24 A
• Not fused
• Polyamide material
• Operating temperature range of -40°C to +105°C
• Twelve ways
• Screw termination method
• Terminal block strip type
• Voltage rating of 450 V
• Wire size of 12 AWG (American Wire Gauge)
