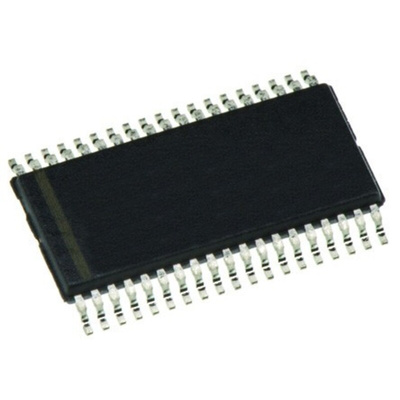

Texas Instruments ADS8688IDBT Data Acquisition IC, 16 bit, 0.5Msps, 38-Pin TSSOP

16-Bit Data Acquisition Systems, Texas Instruments

Integrated 16-bit resolution Data Acquisition Systems from Texas Instruments. The devices incorporate 16-bit SAR ADCs to provide a high resolution digital outputs from the analogue front-end at sampling rates of up to 500ksps. The analogue inputs have an impedance of 1 Megohm and are over-voltage protected up to ±20V. Gain is trimmed to ensure high accuracy and DC precision. The serial digital interface is SPI-compatible and supports daisy-chaining of multiple devices.

16-Bit ADC with Integrated Analog Front-End
Programmable input ranges: Bipolar ±2.56/5.12/10.24V, Unipolar 5.12/10.24V
5V Analogue Supply, 1.65-5.0V I/O Supply
Constant resistive input impedance of 1 MΩ
Input overvoltage protection up to ±20 V
On-chip 4.096 V low-drift reference voltage
500-ksps aggregate throughput
Low power consumption: 65 mW
SPI compatible I/F with Daisy-chain capability
