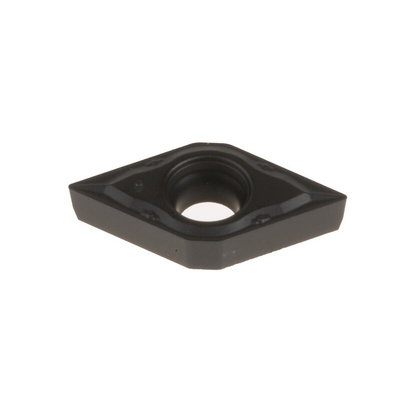

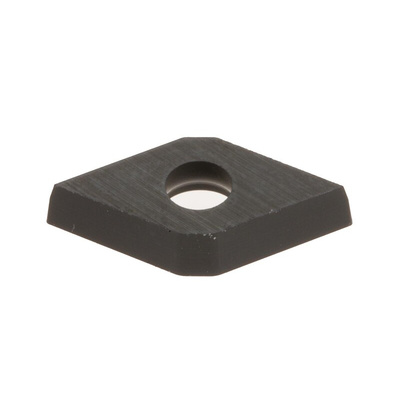

DCMT 070202E-FM, Pramet DCMT Series Lathe Insert, 2.38mm Height, 93° Approach, 7.8mm Length

Pramet DCMT Insert - Positive Angle

For use with SDJC, SDNCN, SDQC, SDUC, SDZC Holders & Bars.

T8330

Excellent for machining Steel, Stainless Steel and Cast Iron
Acceptable for Super Alloys
Positive Angle

T9325

Excellent for machining Steel and Stainless Steel
Acceptable for Cast Iron
Positive Angle

T9315

Excellent for machining Steel, Stainless Steel and Cast Iron
Acceptable for Super Alloys
Positive Angle

Pramet Lathe Part, Rhombus Type, Positive Insert Geometry - DCMT Series - DCMT 070202E-FM:T9325

Need a quick and easy way to shave off your metal's hard edges? Use this lathe part from Pramet. It attaches to your drill to detail or polish off fine to medium machining metals like regular, cast or stainless steel. You can also use this component on cast iron for versatility. With each turn, this bit shears off between 0.05 and 0.12mm to suit the precision stages of metalworking. The tungsten carbide cobalt construction resists wear and tear for long-lasting performance.

Features & Benefits

• Light weight of 1.237g for ease of handling
• Low clearance angle of 7° reduces friction to minimise power consumption
• Cutting depth ranges from 0.2 to 1mm for versatility

Applications

• Metalworking sector
• Manufacturing industry
• Automotive production

How do I fit this part to my drill?

To safely use this bit, you need a turning tool holder that can hold a 55° rhombus.

Turning Inserts

Breakdown of ISO Reference

Higher Number = Tougher / Resistant to Impact
Lower Number = Harder / Wear Resistant

TU5525 the New Universal Turning Grade

TU5525 is a truly universal tuning grade suitable for cutting Steel, Stainless Steel, Cast Iron and heat resistant Aaloys. There is no need to hold stock of a multitude of grades reducing the cost of inventory and time wasted changing inserts. One insert for almost all applications.

TP2135 a Tough Impact Resistant Grade

If insert breakage or chipping of the cutting edge is a problem TP2135 may be the answer. Some application do not offer the cutting edge a constant cutting surface whether from a non round part or holes in the part this constant impact on the cutting edge can lead to insert failing. TP2135 is designed to take higher impact loads giving a more secure cutting edge, suitable for cutting steel, stainless steel and heat resistant alloys.

DCMT Turning Inserts - Positive Data Sheet

Catalogue - Holemaking
