DCMT 11T304E-FM, Pramet DCMT Series Lathe Insert for Use with SDJCR 11, 3.97mm Height, 93° Approach, 11.6mm Length

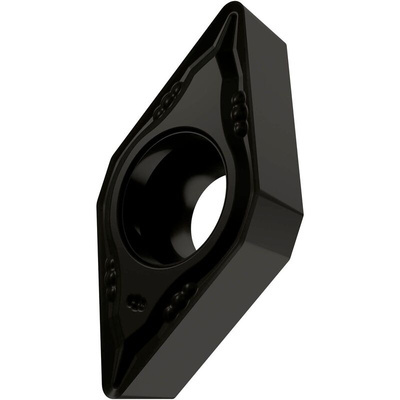

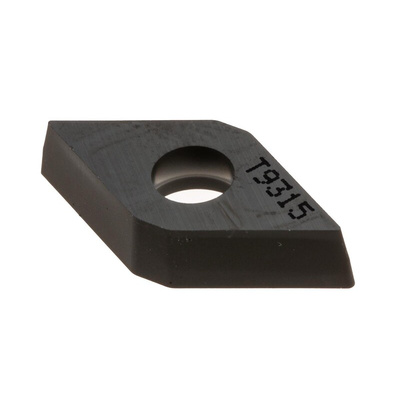

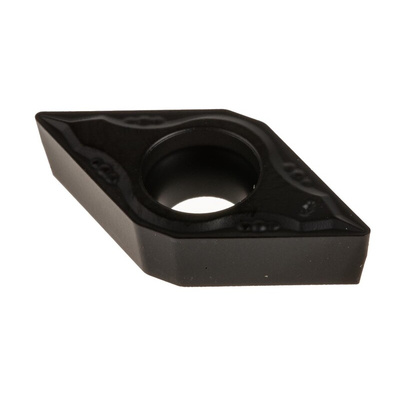

Pramet Lathe Part, Diamond Shape, 0.4mm Radius - DCMT Series - DCMT 11T304E-FM:T9315

Need a hand to help with the precise shaping of your workpiece? Go for this lathe part from Pramet. It's a jack of many trades that fits the bill for various machine operations, including profiling, grooving and facing. The unit is indexable, meaning you can easily swap it out for a new one when it's worn or when the job calls for a different part.

Features & Benefits

• Approach angle of 93° for enhanced durability and resistance to chipping
• Bore diameter of 4.5mm for ease of insertion into the compatible tool holder (866-0335)

Applications

• Oil and gas plants
• Military equipment

How do I ensure the optimal performance of this lathe part?

For best results, you should use coolants or lubricants during machining for heat dissipation and improved chip evacuation.

Turning Inserts

Breakdown of ISO Reference

Higher Number = Tougher / Resistant to Impact
Lower Number = Harder / Wear Resistant

TU5525 the New Universal Turning Grade

TU5525 is a truly universal tuning grade suitable for cutting Steel, Stainless Steel, Cast Iron and heat resistant Aaloys. There is no need to hold stock of a multitude of grades reducing the cost of inventory and time wasted changing inserts. One insert for almost all applications.

TP2135 a Tough Impact Resistant Grade

If insert breakage or chipping of the cutting edge is a problem TP2135 may be the answer. Some application do not offer the cutting edge a constant cutting surface whether from a non round part or holes in the part this constant impact on the cutting edge can lead to insert failing. TP2135 is designed to take higher impact loads giving a more secure cutting edge, suitable for cutting steel, stainless steel and heat resistant alloys.

DCMT Turning Inserts - Positive Data Sheet
