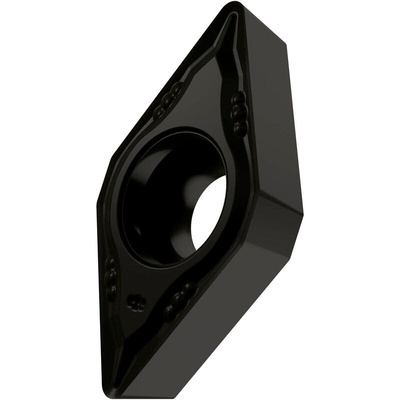

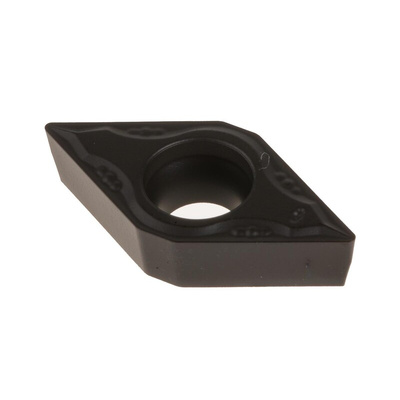

DCMT 11T304E-FM, Pramet DCMT Series Lathe Insert for Use with SDJCR 11, 3.97mm Height, 93° Approach, 11.6mm Length

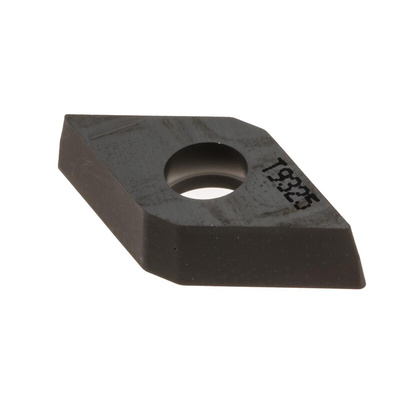

Pramet Lathe Part, 4.4mm Fixing Hole Diameter, 55° Rhomboid Shape - DCMT Series - DCMT 11T304E-FM:T9325

Looking for a robust metalworking component? Turn to this Pramet lathe part. As its tungsten carbide-cobalt body resists heat, it's ideal for lengthy cutting jobs. Thanks to its rounded edges, the product reduces its cutting force for an even surface finish every time. Slipping the component into your setup is no issue, thanks to its standard 4.4mm fixing hole diameter. As it supports cutting speeds of up to 190m/min, the part covers large workpieces in no time.

Features & Benefits

• Tolerates interrupted processes to minimise the risk of cutting errors
• Handles steel, stainless steel and cast iron workpieces for versatility
• MTCVD coating for enhanced resistance to wear

Applications

• Aerospace engineering
• Workshops
• Automotive manufacturing

How do I fit this product to my tool holder?

This part simply clicks into the slotted top of your tool holder (866-0335) and secures in place using the holder's supplied screw.

Turning Inserts

Breakdown of ISO Reference

Higher Number = Tougher / Resistant to Impact
Lower Number = Harder / Wear Resistant

TU5525 the New Universal Turning Grade

TU5525 is a truly universal tuning grade suitable for cutting Steel, Stainless Steel, Cast Iron and heat resistant Aaloys. There is no need to hold stock of a multitude of grades reducing the cost of inventory and time wasted changing inserts. One insert for almost all applications.

TP2135 a Tough Impact Resistant Grade

If insert breakage or chipping of the cutting edge is a problem TP2135 may be the answer. Some application do not offer the cutting edge a constant cutting surface whether from a non round part or holes in the part this constant impact on the cutting edge can lead to insert failing. TP2135 is designed to take higher impact loads giving a more secure cutting edge, suitable for cutting steel, stainless steel and heat resistant alloys.

DCMT Turning Inserts - Positive Data Sheet
